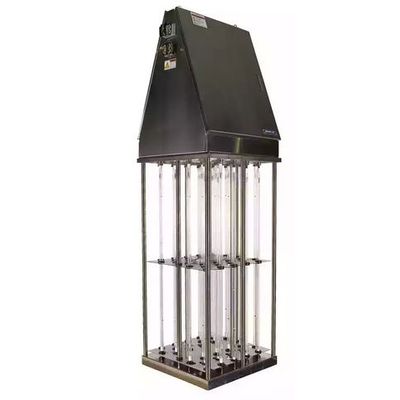

Neotec - Model NOL-V Series -Open Channel Type Low-Pressure UV Disinfection System
FromNeotec Inc.
Small to large capacity range, easy to expand capacity by modular design. Automatic wiper mechanism eliminating the requirement of manual cleaning of quartz sleeves. High efficiency, long lamp life amalgam technology. Overall control features such as UV monitoring, remote controlling, system monitoring and water level regulator. Know-how on selecting most suitable module type and water level regulator for specific site condition. Standardized open channel type model equipped with microprocessor control. Applicable for medium to large size plants. Module with one-touch connector.
Most popular related searches
low pressure ultraviolet disinfection system
water level regulator
level control gate
water level control
water level controller
ultraviolet disinfection system
low pressure ultraviolet
level controller
low pressure ultraviolet system
remote monitoring system
Module Specification:
- Material: STS 316
- Lamp Type/Input power per lamp: Low Pressure, Amalgam / 320 Watts or 500 Watts
- Cleaning System: Electric Motor-driven Automatic Wiper Mechanism with Limit Switches
- Water Level Control(Optional): ALC(Counterbalanced Level Control Gate) or Motorized Weir Gate or Fixed Weir
- Operating Water Temperature: +5? - +45?
Enclosure Specification:
- Material: RAL7032 Painted Mild Steel (Optional StSt 304 available)
- Protection Rating: IP54 / NEMA4
System Control Panel (SCP):
- Controller: PLC
- Voltage / Frequency: 220V-480V, 50/60Hz
- Operating Temperature: +0? - +50?
Power Supply Panel (PSP):
- Ballast Type: Variable output electronic ballast
