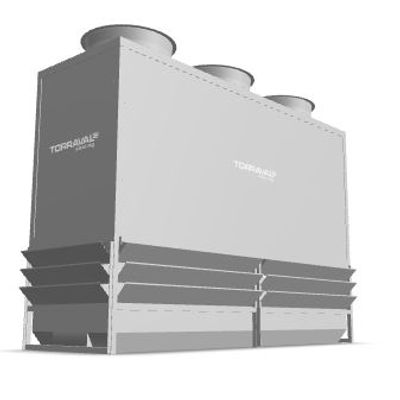

Torraval - Model PME-E Series -Open Circuit Cooling Towers

• Axial motor-fan with direct coupling, low installed power, low noise levels.

• Support structure in hot dip galvanized steel after fabrication.

• Distribution system in PVC, PP or PE equipped with wide non-clogging PP spray nozzles.

• Fill pack with different kinds of air/water channels, suitable for the use with different water types.

• Certified PP drift eliminators (entrainment 0.01%).

• Tank with sloping base entirely made of fibreglass.

• Capacity: from 860 kW to 2.6MW (indicative capacity referring to a machine, thermal gradient 5°C).

Special versions

The PME-E series is also available in a special “Container” version, designed and built for easy shipment, to optimize the transport volumes and to reduce the costs.For all basic models the following special versions are available:

• ATT: high temperature water, with max peaks of 80°C.
• N: for water containing low quantities of suspended solids.
• N-ATT: for high temperature water (with max peaks of 80°C) containing low quantities of suspended solids.
• GS: for water containing large quantities of suspended solids

Accesories and construction variants

The following accessories and/or construction variants are available for all models under request:

• Three-phase heating element with control thermostat.
• Minimum level cut-out switch.
• Two-speed motor with graduated thermostat, automatic cascade.
• Control panel
• Stainless steel metal parts (instead of hot-dip galvanized steel).
• Removable side-walls to allow inspection, easy cleaning and maintenance to the internal components of the cooling tower
