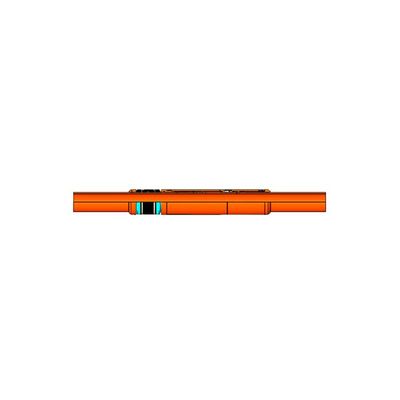

SledgeHammer - Model SH518- OHP -Open Hole Hydraulic Set Packer

Open hole Packer provides mechanical isolation where high-pressure differentials are required across the packer element. The Open hole packer’s conventional compression set element sets with the application of differential pressure in excess of the anti-preset shear value. The Open hole packer is designed to set by applying pressure at the surface to create sufficient differential pressure across the packer. A plugging device is required below the packer so that tubing pressure can be applied to set the packer. Suitable plugging devices include, but are not restricted to, a pump-out plug, KLC (Locking Ball Landing Collar) ball seat, horizontal ball seat, or a wireline blanking plug seated in the proper landing nipple.
