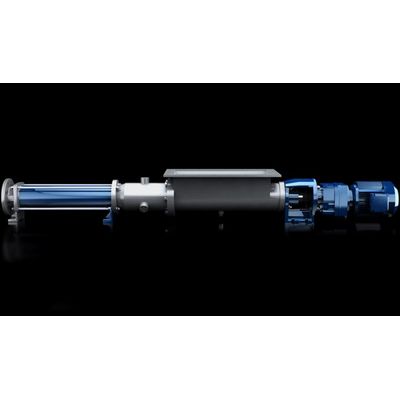

Seepex - Model BTM Range -Open Hopper Pump
FromSeepex Gmbh
The BTM range pumps have an integrated macerating device in the compression zone which allows for easy processing in subsequent processes.
Most popular related searches
cartridge mechanical seal
tensioner pump
sealing system
variable frequency drive controller
variable frequency drive control
macerator
variable frequency drive
metering system
Conveying Medias
- For products with large pieces of fruits and vegetables
Properties
- Conveying capacity: 0.25 m³/h – 130 m³/h (1.1 USGPM – 572 USGPM)
- Pressure: up to 24 bar (350 psi)
- Extended compression casing with stationary cutting mechanisms
- Rectangular open hopper, variable length
- Extended auger feed screw with rotating knives in the compression zone
- Compact design with directly flange-mounted drive (block type)
- Available with free bare shaft (TMNS range)
DRIVES & BASE PLATES
The figures below are examples to demonstrate the various drive and baseplate versions. seepex pumps can be delivered with geared motors, variable speed drives and frequency-controlled drives of all well-known manufacturers. The drive types can be used for all ranges.
Accessories
- SEEPEX gland packing (standard design)
- SEEPEX gland packing with grease chamber or seal cage
- SEEPEX double-acting mechanical seals
- SEEPEX cartridge mechanical seals
- Oxidation-free maceration of fruits and vegetables with subsequent conveying (pump installed in a closed system)
- Optimum filling of the conveying elements through a cylindrical/conical compression zone
- Simple dismantling of the compression casing
