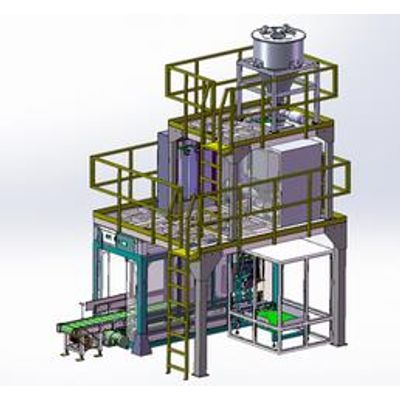

Zengran - Model GFCK-X -Open Mouth Bag Filler
GFCK-X is Zengran`s industry leading product which is specially designed for ultra-fine powder above lOOOmesh weighing and filling into PE premade bags. The filling and sealing system integrated with 3 stations, the first station is weighing and pre air-releasing, the second station is decent air-releasing by vacuum filter sticks, the third station is continuously heat sealing.
Most popular related searches
- Max Speed: 50-70 Bags/H
- Bag Size: L(900-1200mm)*W(50O-600)
- Weighing, bagging, bagging, feeding, sewing and other processes are fully automated.
- Adapt to a variety of specifications of woven bags, and can realize one key intelligent switch, fast and convenient.
- Using touch screen and PLC control, easy and convenient operation.
- Servo motor drive is used in many places, which is safe and reliable, fast and stable.
- With automatic fault alarm function, according to the fault prompt can be quickly checked.
- Optional remote diagnosis function, easv to maintain.
Equipped with vacuum filter sticks to evacuate the air and make a vacuum packed bag, it is specially for the packaging of ultra-fine and puffy powder product such as pearl powder, mica powder, pigment powder, maccha powder, etc
- Model GFCK-X
- Applicable materials Powder
- Weighing range 10-20kg (22b to 551b)
- Bag Matirical Woven bag, kraft paper bag, PE bag
- Bag Type One line pocket, M side pocket
- Speed 50-70bags/hour
- Ambient temp -10°C to +45°C
- Electrical 380V/50Hz, 3phase or customized per specification
- Power 10KW
- Air Pressure & Consumption 0.7Mpa, 0.6 M3 / min
- Bagsize(mm) L900-1200mm x W50O-600mm
- Packing weight(kg) 10-25kg/bag
