Open-Ocean - Engine Driven System
From Watermaker

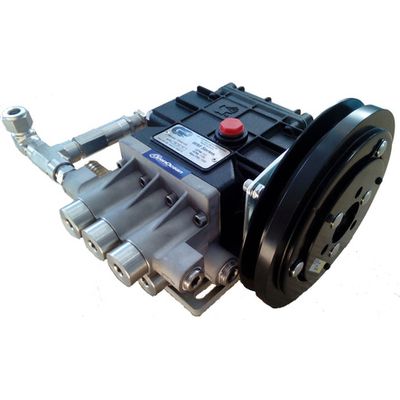

The engine driven model is an excellent way to utilize your engine running time to produce large quantities of water. The high pressure pump mounts on your engine or generator via an electric clutch driven by one “A” section belt.
Products Details
All Open Ocean water makers have manual flush systems as standard. However, an automatic flush system is available as an option.
Units are modular in design allowing you to utilize unused areas. Increase your fresh water production from 80 ltrs per hour to 240 ltrs per hour by simply adding extra membranes.
Open Ocean is of the belief that water makers are no longer a luxury item, but an essential piece of equipment to provide superior quality water for all of your requirements.
Components included:
- Control Panel
- High flow, high pressure pump
- Boost Pump
- Pre filtration
- Flush System
- Pressure Relief Valve to protect the system
- Carbon Fibre /2000 psi – Membrane Pressure Vessel
- High pressure hose with chafe resistant sheathing
- Pickling solution
- Extra 5 micron seawater filter
- Complete Installation/Instruction Manual
Optional:
- Additional Membranes 160 and 240 litre per hour production rates
- High Output Membranes 115 litres per hour
- Automatic Flush System flush for 2 minutes every 7 days
- Extra 20 micron pre filter
- Sliding Base Plate for horizontal belt tensioning
- Pivot Bracket for vertical belt tensioning
