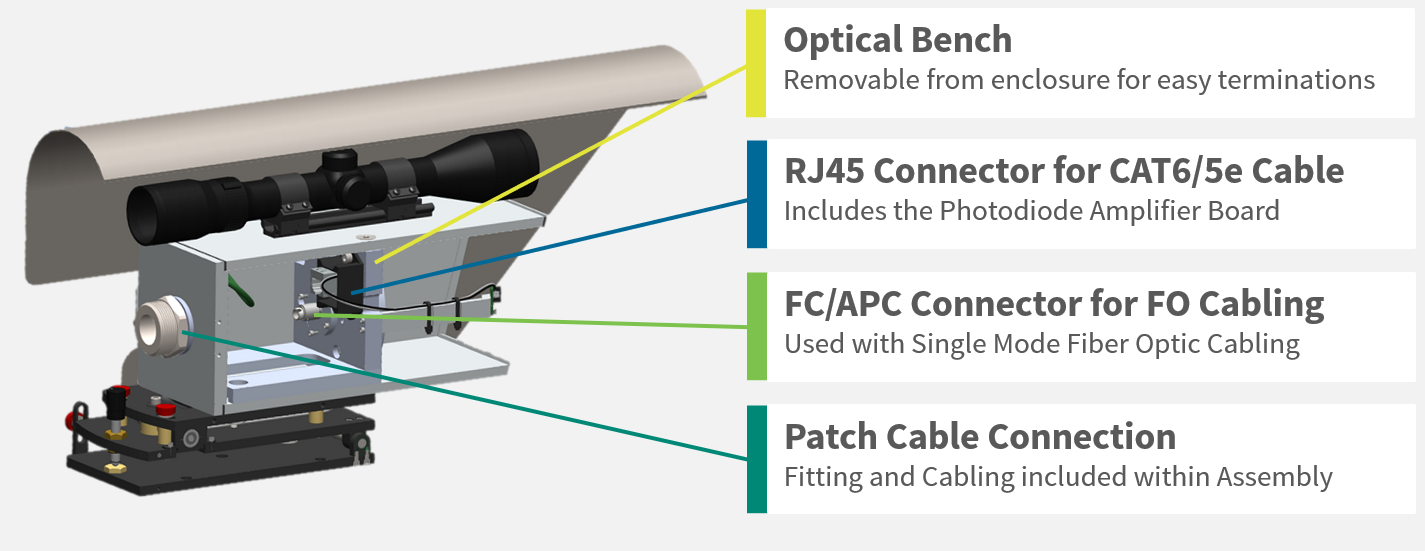

Boreal -Â Open Path (OPX) Head Assembly

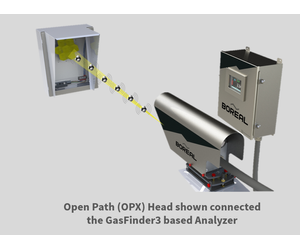

Used for Line-of-Sight Gas Detection: Path lengths range from 5 - 500 m (15 -1,500 ft). Use in Hazardous Area Applications: (A)Ex ib IIC T5 Tamb less than 70°C Gb (C1 Div1, G: A, B, C, D). Enhanced Detection Capabilities: Large Area Coverage, Fast Response, & Low MDL's. Remote Measurement Head: Paired with one of our GasFinder3 Instruments. When combined with one of the GasFinder3 Analyzers, it creates an Laser Based – Open-Path Gas Detector used in Industrial Leak Detection or Ambient Monitoring Applications.
Large Area Coverage
Great for enclosed, congested, and open areas
Fast Speed of Response + Recovery
New and independent result every single second
No Sensor Poisoning + Over Ranging
Ideal for frequent and/or constant gas exposures
Fail Safe Operation + SIL2 Suitable
Diagnostics with no undisclosed failure modes
Thrives Where Others Do Not Survive
Ideal for challenging monitoring applications
Need for Enhanced Performance
Early detection and rapid intervention saves lives
Capital and Operational Cost Savings
Especially if replacing 3-4 Fixed Point Detectors
Use in Hazardous Area Applications
(A) Ex ib IIC T5 Tamb less than 70? Gb (C1 Div1, G: A, B, C, D)

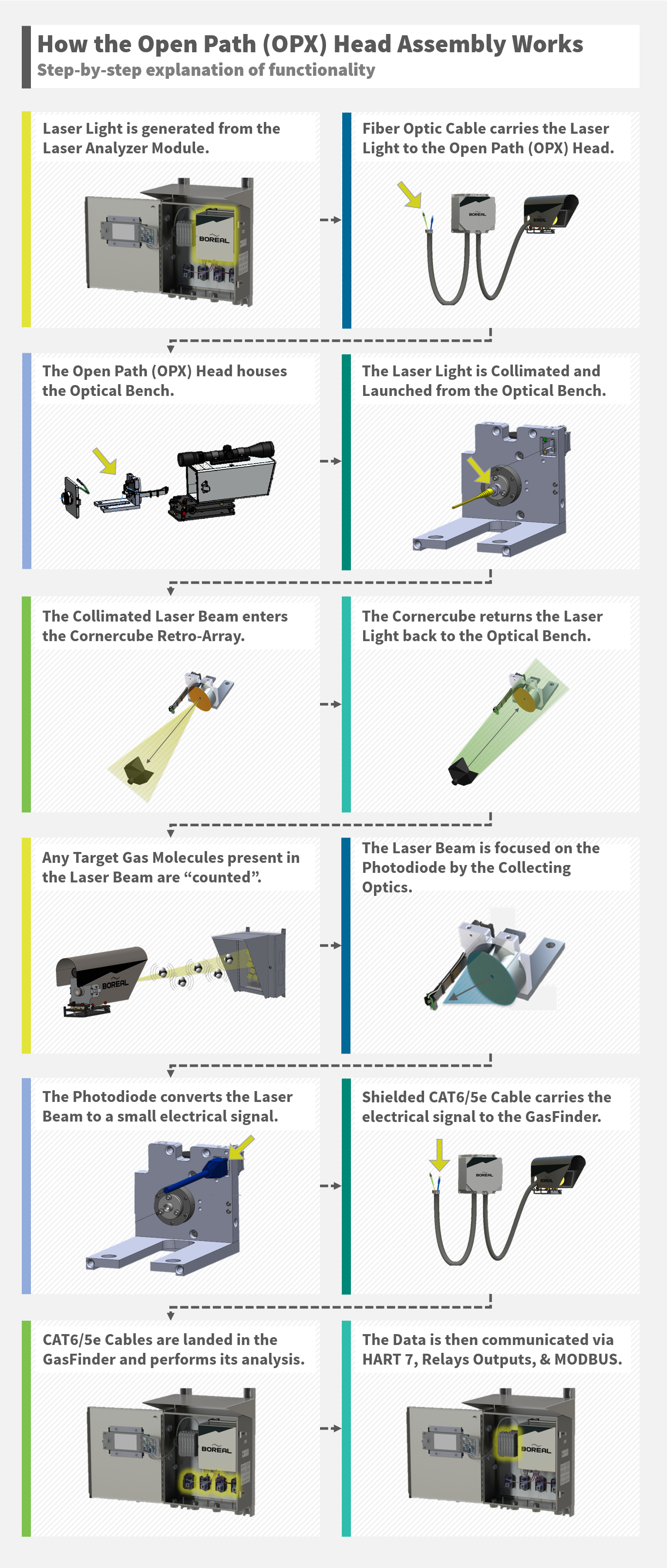

Laser Light is the Sensing Element
Class 1 Eye Safe: Near Infrared (NIR) laser light
This Counts the Target Gas Molecules
As the pass through the Active Measurement Path
Quantifiable Volumetric Result
Confirmation of both gas type and concentration
No Interference + No False Alarms
This only detects the specific target gas of interest

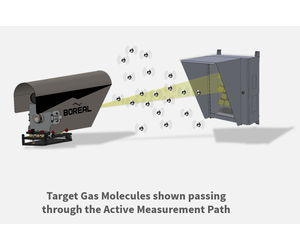

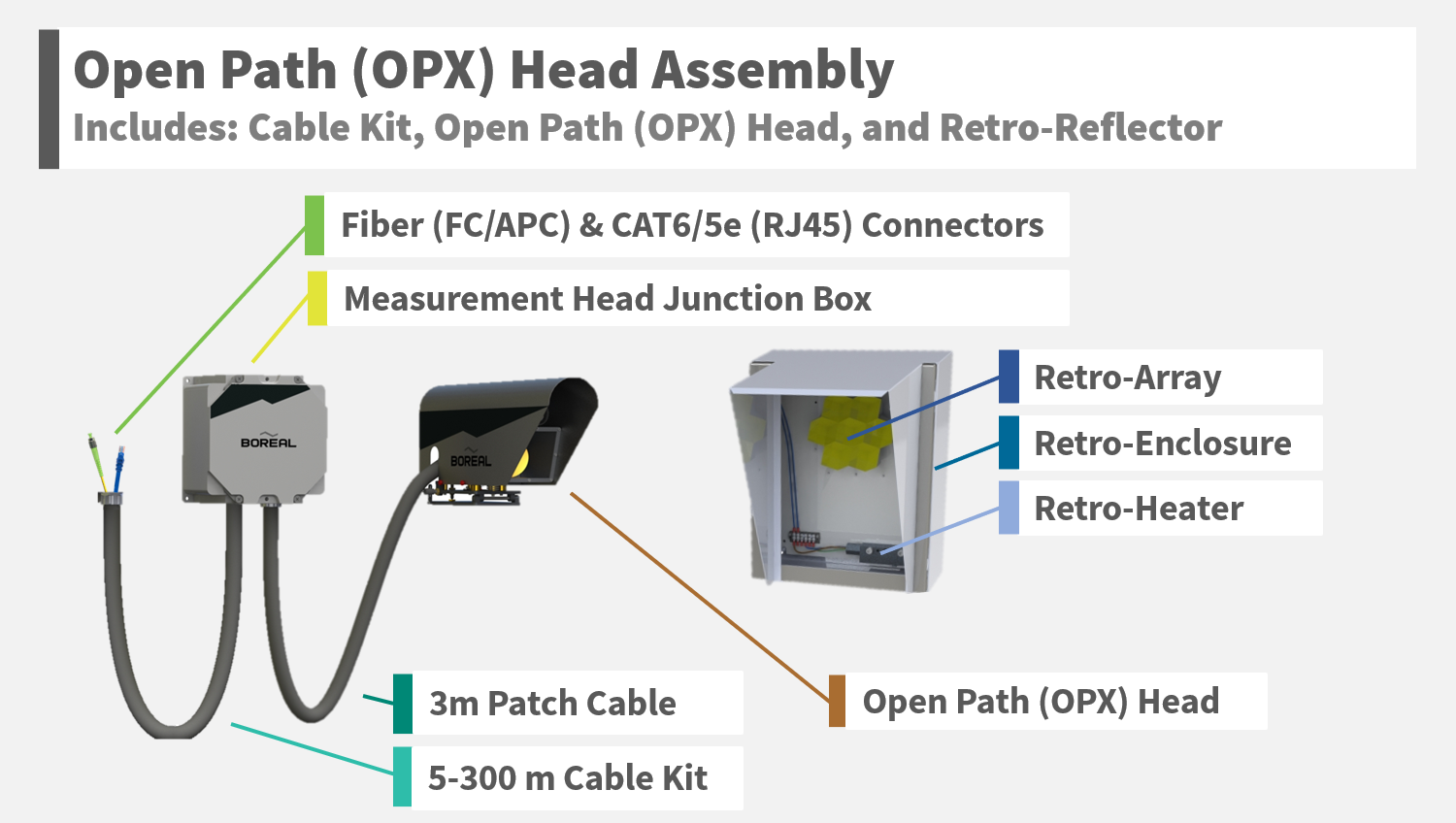

Form the Active Measurement Path

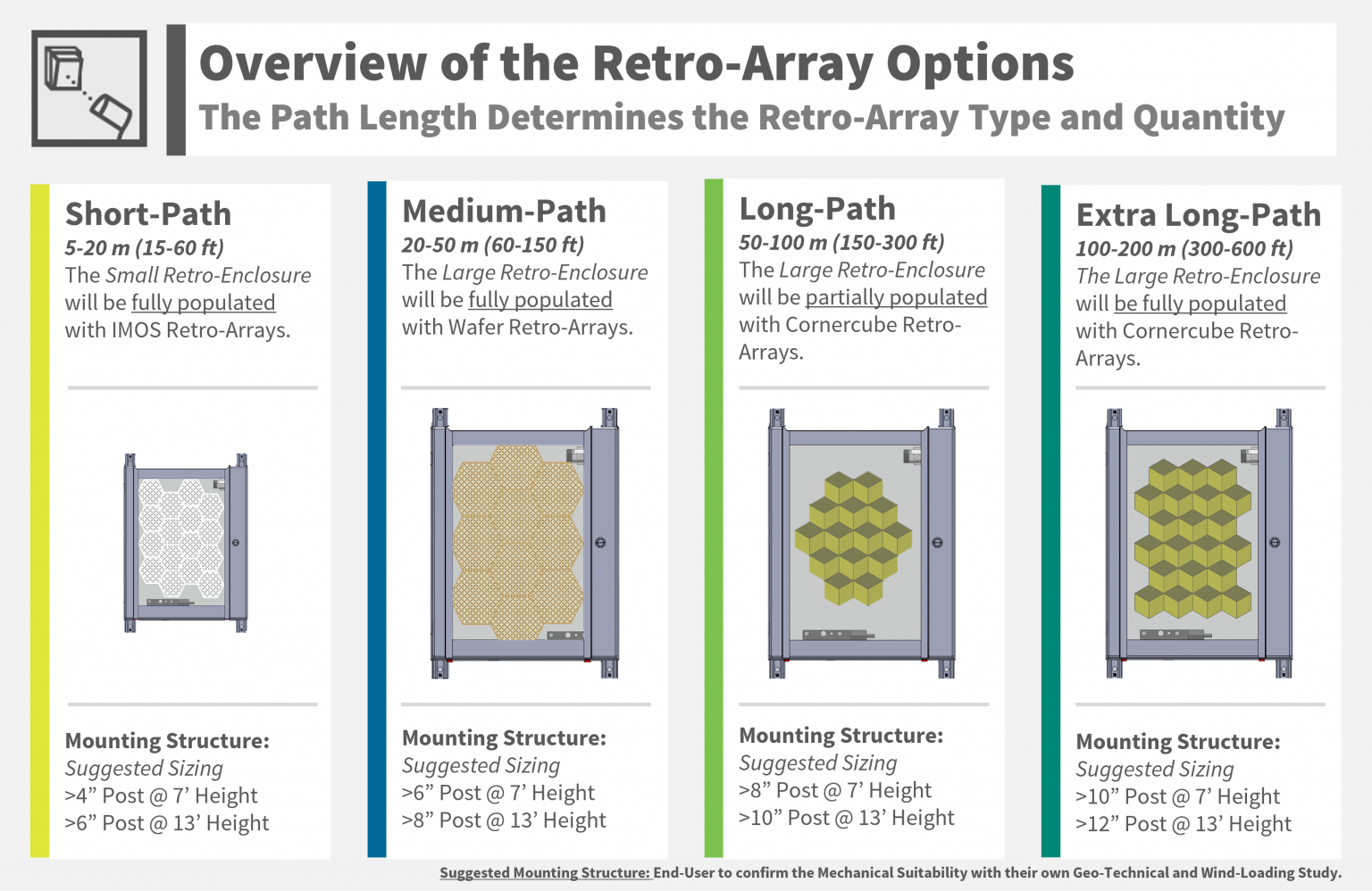

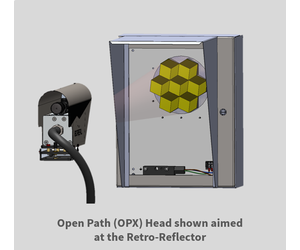

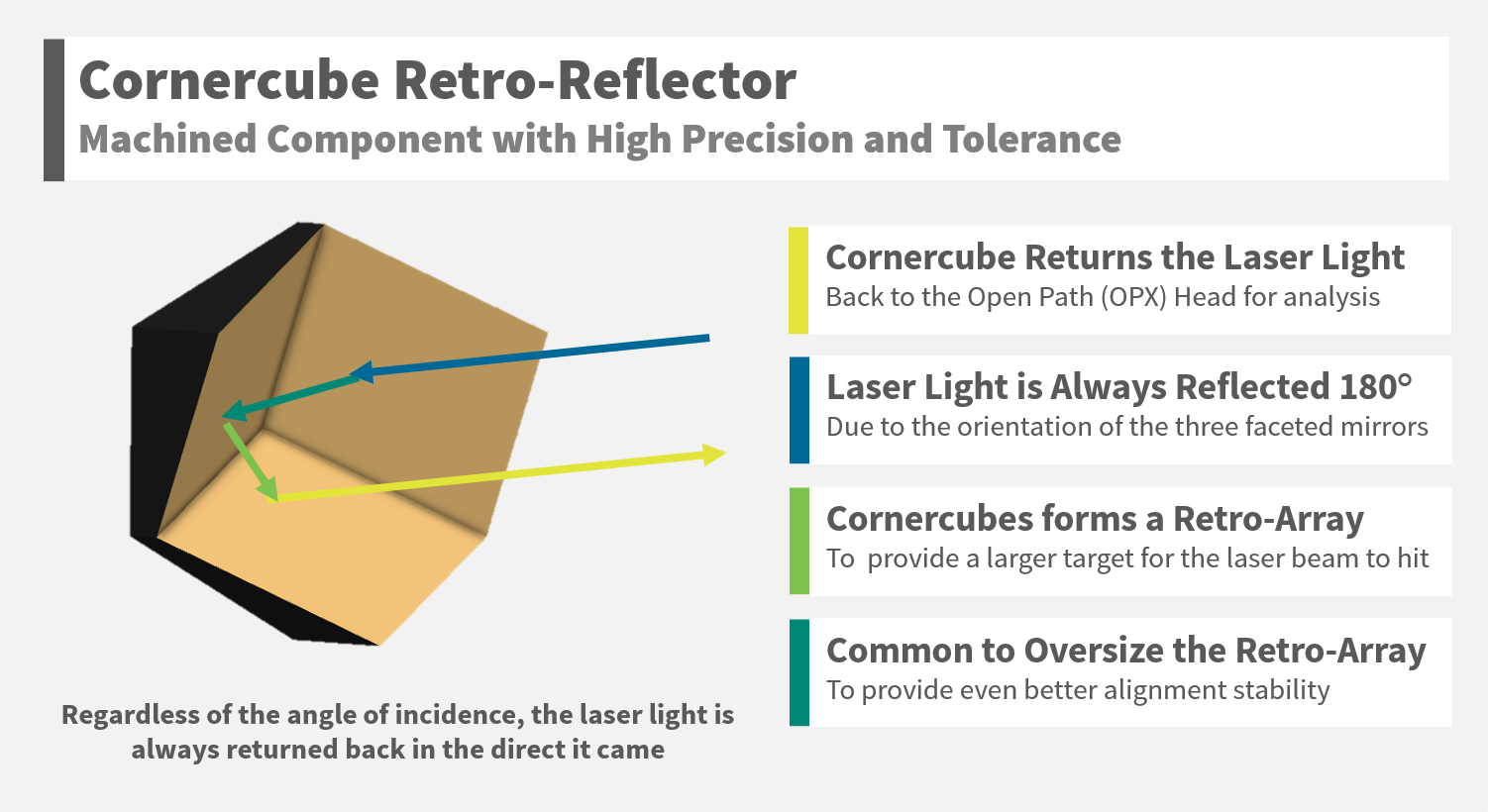

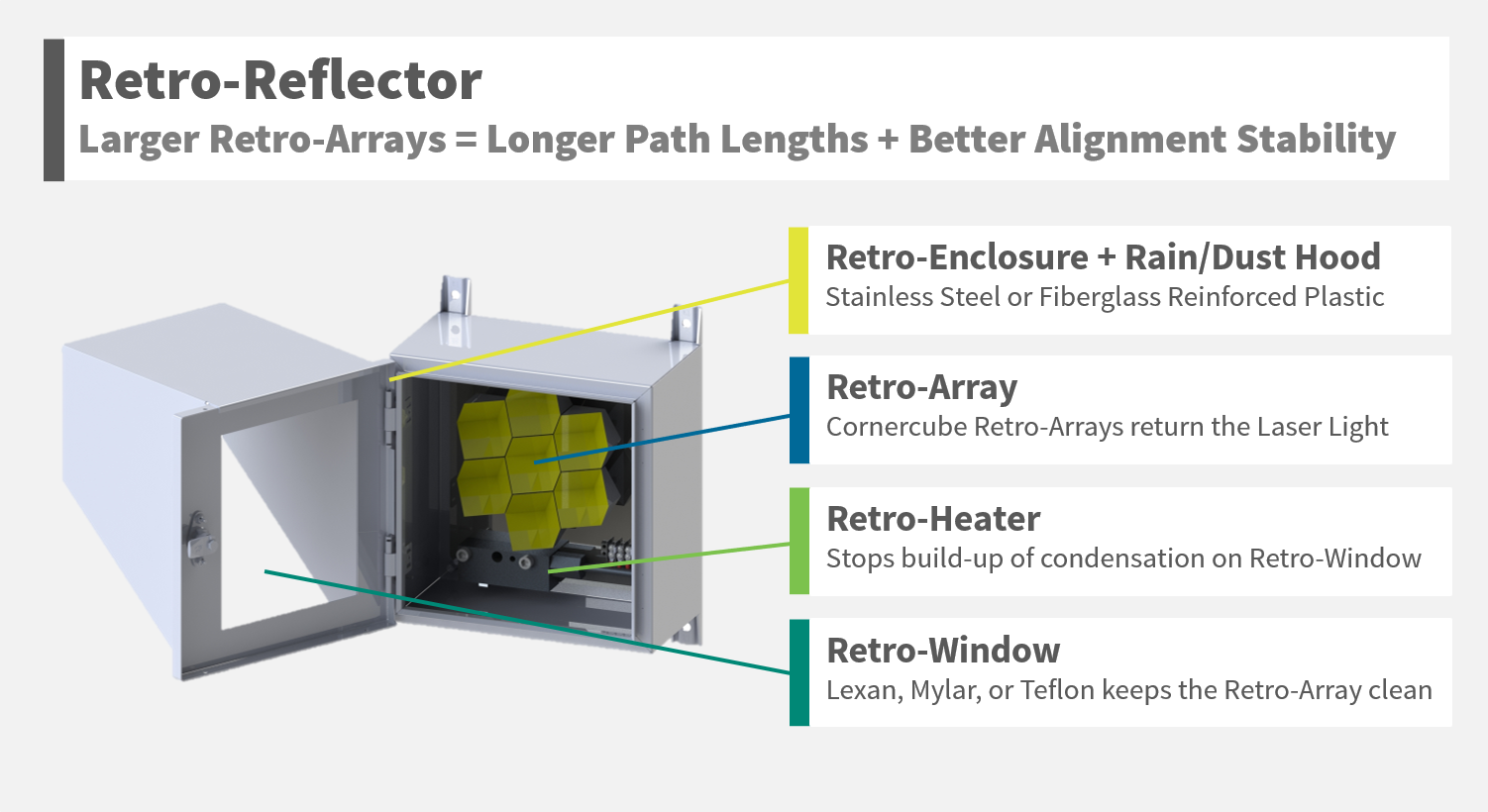

With the Open Path (OPX) Head + Retro-Reflector

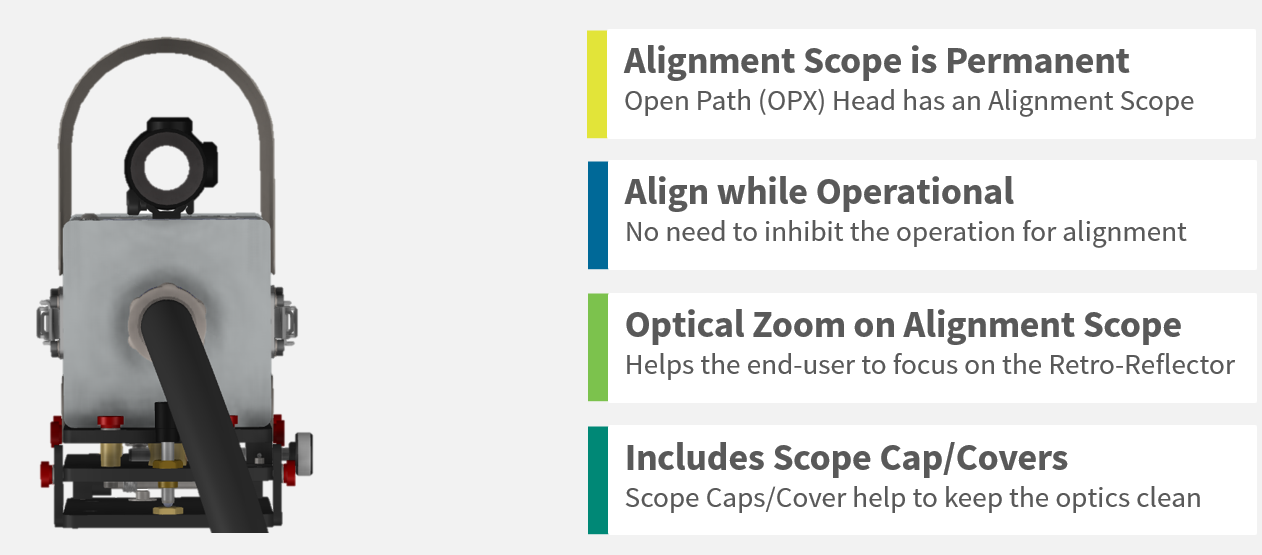

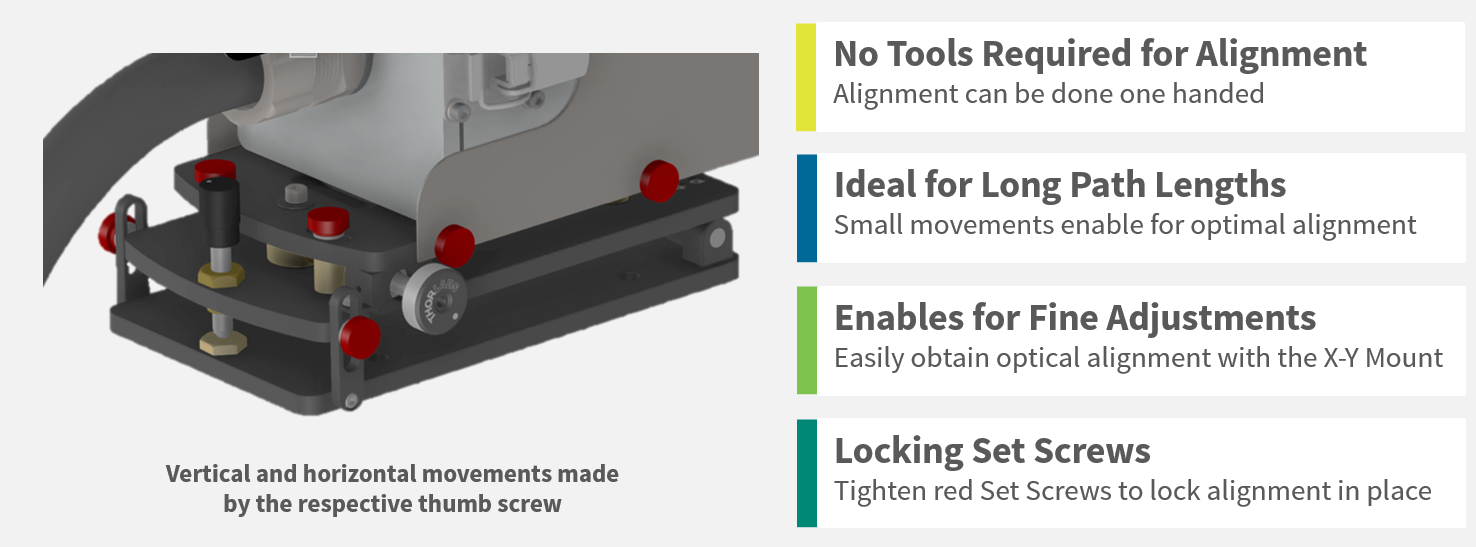

Easily Obtain + Maintain Alignment
Align with one hand without needing hand tools
Superior Tolerance to Vibration
Vibration helps to integrate and quiet the analysis

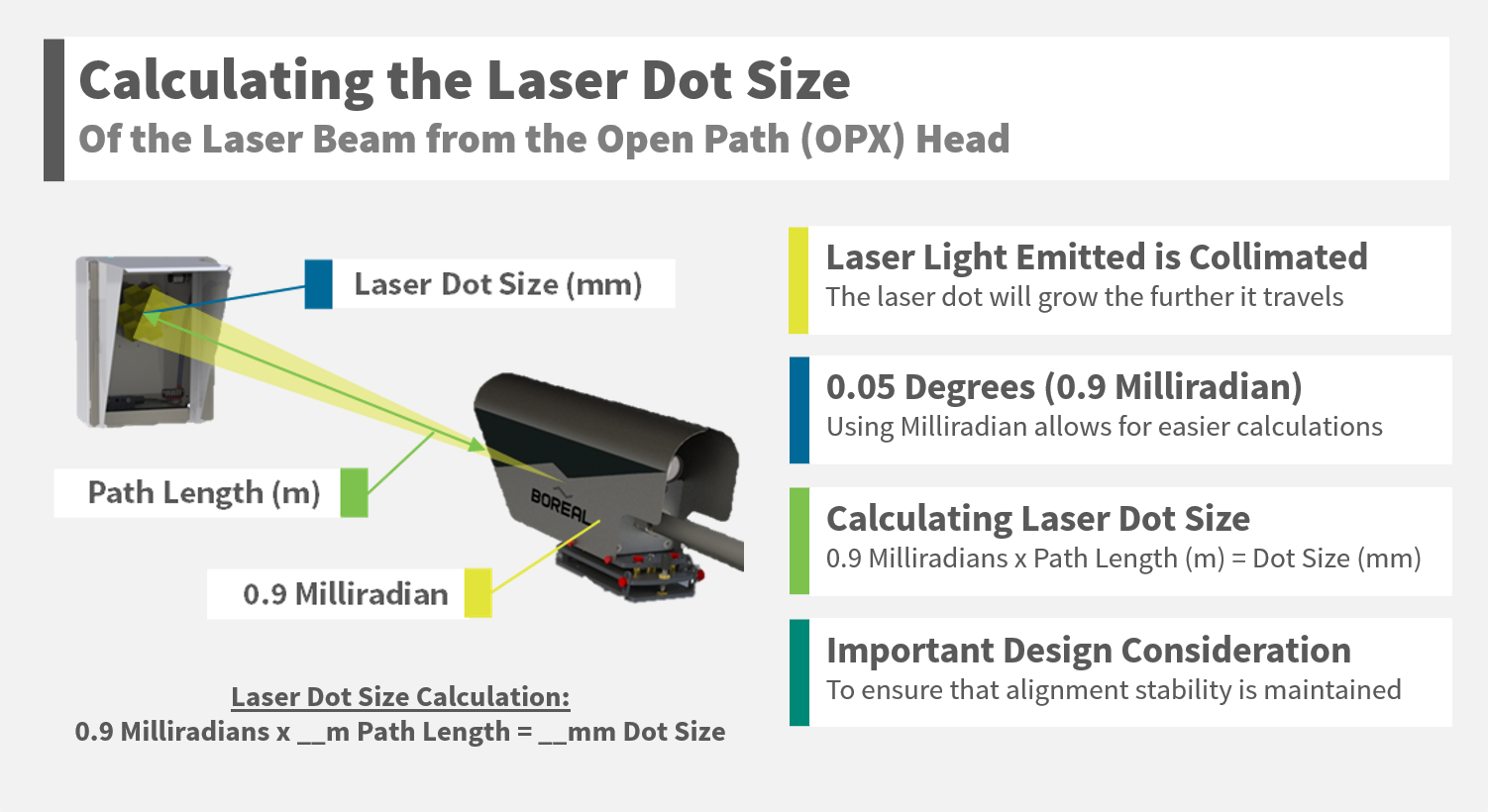

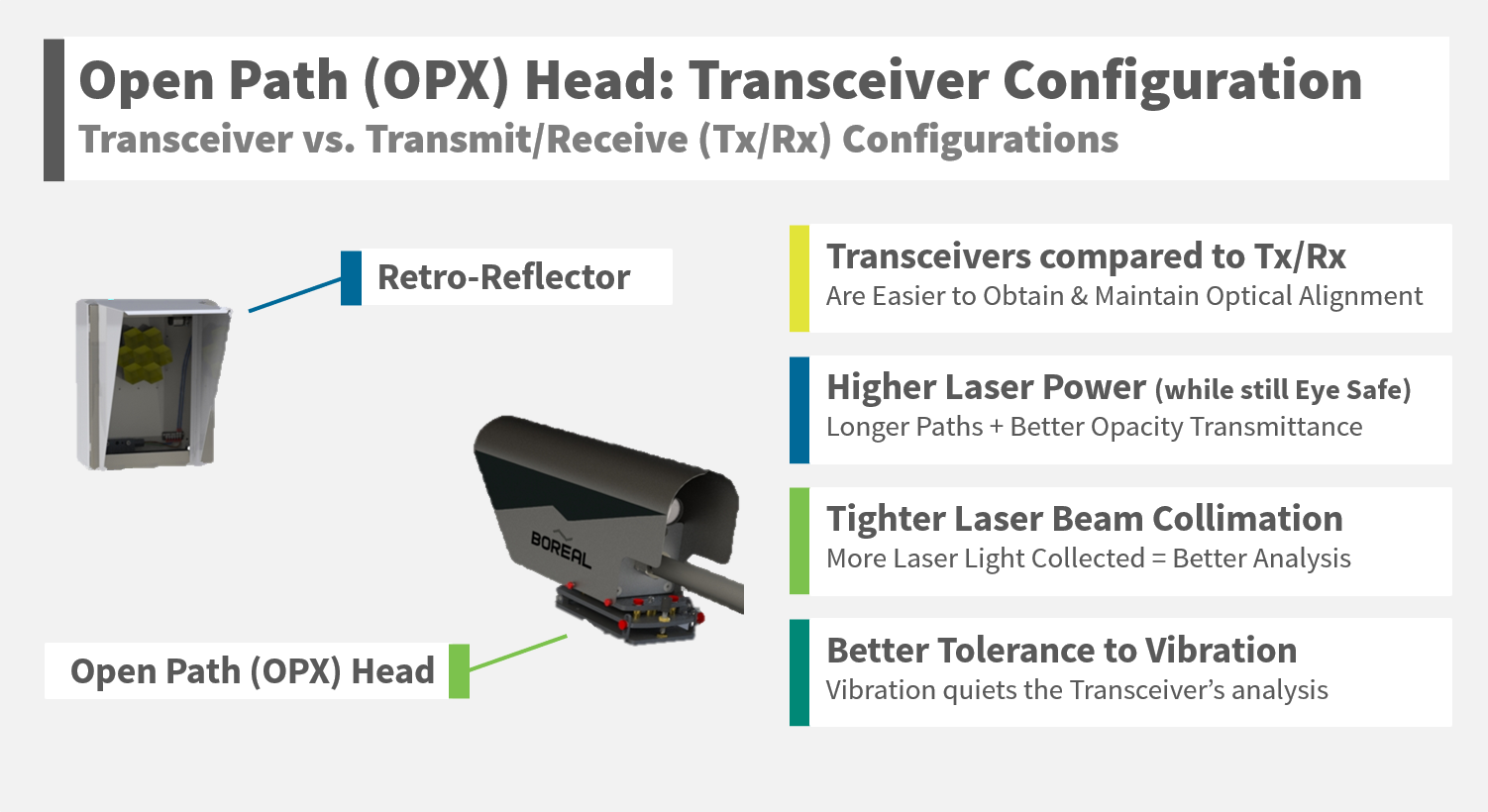

High Laser Power + Tight Collimation
Optimized for use in short/long path applications
