Hennlich - Model NZO300E -Open Trucks and Railcars Spout

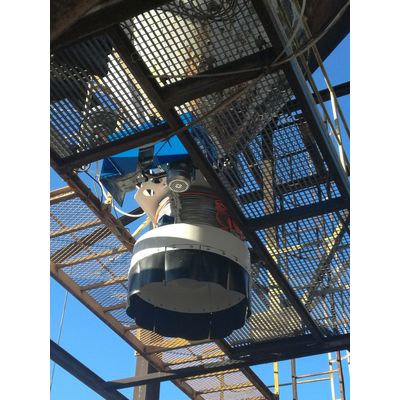

Telescopic loading spouts type NZO are designed for an effective loading of dry, dusty bulk solids.
Most popular related searches
OPERATIONAL QUALITIES
- max. loading rate up to 250 m3/h
- particle size 0-40 mm
- connection flange DN 300
- pipe 125 mm for the connection to the external filtration
- standard operational temperature -20 °C/+80 °C
- motor drive 0.55 kW
- loading conduit consisting of internal conical cones and external bellows
DESIGN
- electric winch with limit switch
- rope switch
- level sensor - rotary / vibrating / capacitance type
- skirted outlet
The most common applications
- trucks
- open railcars
- containers
