ABS - Model CA 511 -Operator Panel

SHARE

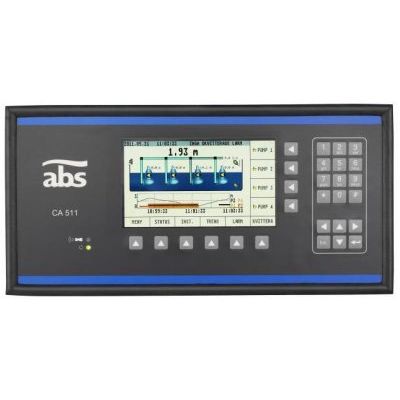

The CA 511 is an operator panel used in combination with the PC 441 controller for advanced monitoring of pumping stations. The CAN-bus manages communications and supplies power. The TFT 480x272 pixel display includes 28 keys to simplify operations and ensure user-friendly operation.

Most popular related searches
pump station
pump control system
pump system
monitoring pump
pump controller

Users can access or view data and settings in several formats via the graphical user interface:

  • Alpha numerical
  • Animated graphical symbols
  • Trend curves

When mounted, the operator panel has a high outer IP 65 classification and needs only 25 mm building depth behind the door /panel.

  • IP 65 front panel protection
  • Only 25 mm deep behind door/panel
  • Large color TFT screen
  • Resolution: 480*272 pixels
  • 10 quick navigations keys
  • Combined numerical and alphanumerical keys
  • CAN-bus status LED
  • General alarm LED
  • May be configured for metric or US units
