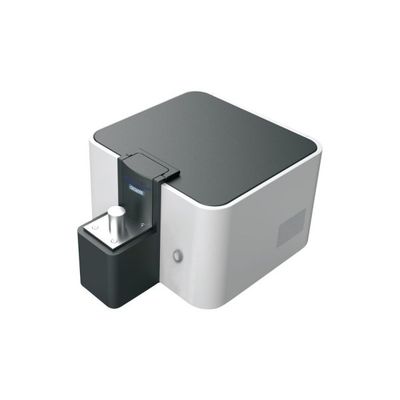

Skyray - Model OES 6000 -Optical Emission Spectrometer
Based on the Multi-CCD detector and total spectrum technology, OES 6000 Optical Emission Spectrometer is able to detect all the spectral lines within the wavelength range. OES 6000 Optical Emission Spectrometer features a new design which eliminates the need of a vacuum pump and vacuum sealed chamber for accurate analysis. Thanks to its compact size, OES 6000 is a convenient instrument for the analysis of ferrous and non¬ferrous metals.
Most popular related searches
optical emission spectrometer
emission spectrometer
non-ferrous metal
optical spectrometer
optical emission spectrometry
vacuum pump
spectrometer
emission spectrometry
non-ferrous metal processing
optical spectrometry
- High end Components- CARL ZEISS Grating and Optical lens, Toshiba CCD Detector & Agilent Optical Fiber
- Polychromator operates without need of vacuum pump
- Fast analysis: 35 seconds testing
- Excellent reliability and repeatability- 24/7 operation
- Compact Size
- Metallurgy, steel, ferrous & non-ferrous metals
- R&D, process control, inspection and sorting.
- Metal smelting, metal casting and processing industry
- Polychromator : Paschen-Runge Polychromator
- Chamber: : Special casting materials reduce the deformation of the chamber
- Grating: : Holographic concave grating- 3600 l/mm
- Wavelength range: : 200-500 nm.
- Detector: : High-performance linear array CCD
- Analysis time: : less than 30 seconds for most tests
- Spark Source : Digital plasma generator with high energy pre-spark (HEPS)
- Spark Frequency : 100-1000Hz
- Spark Current : 1-80A
- Size/weight: : 30cm x 50cm x 45cm, weight: 30kg
