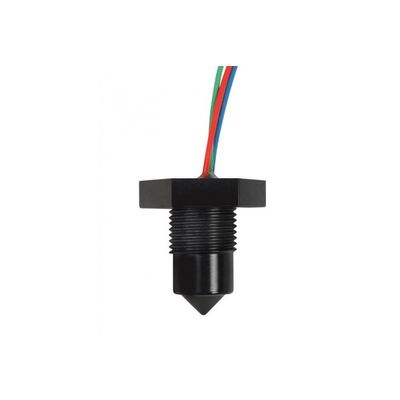

Madison - Model OPT4210-P1 -Optical Liquid Level Sensor
Optical Liquid Level Sensor, Plastic, M12x1 , Wet Sensing, 4.5-15.4 VDC; Detects high/low levels in a container. Can sense a variety of clean, non-coating liquids such as ultrapure water, oil and CO2. Stable even under continuous use in hot water and steam at temperatures up to 257°F.. Typically used for analytical instrumentation, medical devices and semiconductor process equipment components as well as dairy connectors, manifolds and steam-cleaning equipment. Wet sensing - (not field changeable).
Most popular related searches
liquid level sensor
level sensor
optical sensor
steam cleaning
analytical instrument
ultrapure water
equipment steam cleaning
- Approvals : CE
- Electrical Ratings : 100mA Iout Max
- Input Voltage : 4.5-15.4 VDC
- Lead Wires : 9.8", 24 AWG, PTFE Insulated
- Max Pressure : 100 PSI
- Max Temperature : 257˚F (125°C)
- Mounting : M12x1
- Other Wetted Materials : Polysulfone
- Type : Optical Liquid Level Sensor
