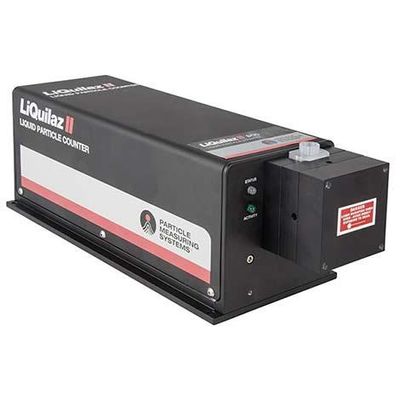

PMS - Model LiQuilaz - II S Series -Optical Liquid Particle Counter
LiQuilaz II optical liquid particle counter is a volumetric monitor with a variety of sizing sensitivities as low as 0.2 µm. It provides high precision analysis for most process chemicals, including hydrofluoric acid and hot corrosive chemicals up to 306 °F (152 °C). Sensitivity range: 0.2 – 20 µm.
A unique solution in the comprehensive line of liquid particle counters, the LiQuilaz II particle counter by Particle Measuring Systems provides the same levels of accuracy, reliability and repeatability that customers have received from our instruments for many years. LiQuilaz II liquid particle counter features both RS-485 and Ethernet network communications.
Volumetric particle counting offers the highest precision possible by measuring 100% sample volumes (up to 80 ml/min) so that short sampling intervals can be utilized without sacrificing statistical significance.
Find the right particle counter for your application by using Particle Measuring Systems’ (PMS) particle counter finder tool.
Particle Measuring Systems engineers, manufactures, installs, calibrates, repairs, and maintains the LiQuilaz® II S series optical liquid particle counter.
- 0.2 – 20.0 μm particle counter size range
- Up to 80 ml/min flow rate
- Compatible with a wide range of process chemicals
- Small footprint for easy placement anywhere in the process
- User-selected particle size threshold
S02: 0.2 – 2.0 µm, S03: 0.3 – 3.0 µm, S05: 0.5 – 20.0 µm
- In-line and batch sampling capabilities
- Effervescent chemical measurements using compression sampling
- Chemical quality assurance
- Process bath monitoring
- DI water monitoring
- Chemical delivery systems
- Photoresist monitoring
- 0.2 – 20.0 μm size range
- Up to 80 ml/min flow rate
- Compatible with a wide range of process chemicals
- Small footprint for easy placement anywhere in the process
- User-selected particle size threshold
- S02: 0.2 – 2.0 µm, S03: 0.3 – 3.0 µm, S05: 0.5 – 20.0 µm
- In-line and batch sampling capabilities
- Effervescent chemical measurements using compression sampling
- Chemical quality assurance
- Process bath monitoring
- DI water monitoring
- Chemical delivery systems
- Photoresist monitoring
