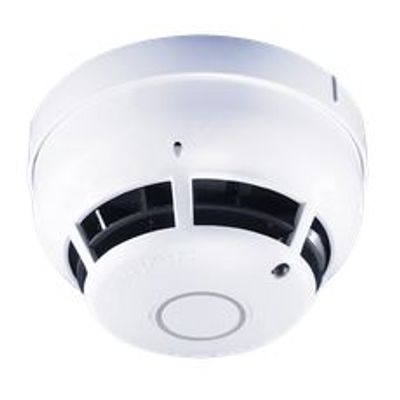

Protec - Model 6000PLUS -Optical Smoke Sensor
Interactive addressable high performance optical smoke sensor provides efficient reliable detection using the light scatter sensing principle with rapid response to a fire signal. The intelligent sensor data is evaluated by the Protec Algo-Tec™ 6000PLUS interactive programmable algorithms, designed to give maximum sensitivity to smoke detection, with high resistance to false alarms due to high air velocity, insects, dust and R.F. interference. Providing early warning of a fire condition particularly for slow burning fires, the 6000PLUS/OP is an ideal general purpose smoke sensor for offices, shops, corridors, factories, warehouses and computer rooms.
Most popular related searches
optical smoke sensor
smoke sensor
fire detection
optical sensor
smoke detection
sensor data
fire detection system
smoke generator

- Protec Algo-Tec™ 6000PLUS Protocol
- Ideal for Detecting Smouldering Fires
- Devices Display Address Number
- Easy To Address
- FAST™ Addressing
- Reduced False Alarms
- Approved to EN54 & AS 7240 Part 7
BASE Options
- Low profile common mounting base
- Fast fixing semi recessed base
Note – base options above are included in the product approval.
- Environment: -10°C to +50°C (95% R.H. non condensing)
- Ingress Protection: IP41
- Weight (excluding base): 90g
- Loop Powered: Yes
- Loop Standby Load: 0.2mA
- Loop Alarm Load: 0.2mA
- Loop Voltage: 18 – 28V
- Isolator: No
- Dimensions (mm): 98.60ø x 56.50H
- Device Protocol: Algo-Tec™ 6000PLUS
- Relevant Standard: EN54 & AS 7240 Part 7
