REDWAVE - Model ROX Series -Optical Sorting Machine for Minerals and Stones
REDWAVE ROX for minerals and stones. REDWAVE ROX was developed for sorting many different minerals, ores and precious stones such as calcite/dolomite, magnesite, quartz, talc, feldspar as well as gold, copper, nickel, etc.
Most popular related searches
sorting system
optical sorting system
vibratory feeder
ore sorting
colour sorting system
bulk density
sensor system
belt conveyor
optical sorting
XRF sorting
- Detection and sorting according to colours, brightness and transparency
- Detection of materials with minerals of the same colour
- Detection and sorting according to chemical composition
- Single side or double side detection
- Combined systems (colour and material recognition)
- Working width up to 2,000 mm with colour sorting
- Lighting with automatic cleaning
- High efficiency
- High throughput at maximum output rate
- High machine availability
- Short amortization period – economical sorting technology
- Sorting wet and dry materials
- Industrial minerals (limestone, calcite, dolomite, magnesite, quartz, talc, feldspar, bauxite, etc.)
- Gemstones (diamond, topaz, aquamarine, tanzanite, etc.)
- Implementation: single side and double side recognition
- for colour and material recognition
- Industrial minerals (limestone, calcite, dolomite, magnesite, quartz, talc, feldspar, etc.)
- Sorting of ores
- Sorting of ores according to the desired degree of purity
- Sorting according to the ratio between the different elements, e.g .: Mn / Fe
- e.g. sorting of manganese ore into different quality classes based on the Mn content and other elements
- present (e.g. Fe)

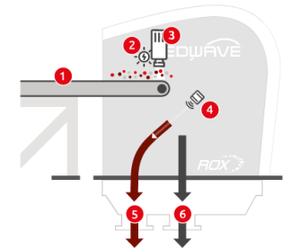

- Acceleration belt conveyor
- Light source
- Camera
- Valve unit for material ejection
- Eject A (positive sort)
- Pass (negative sort)

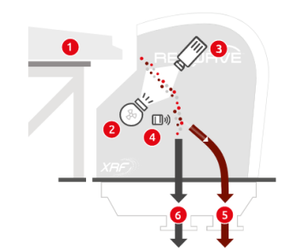

- Vibratory feeder
- Sensor unit with X-ray tubes and detectors
- Camera
- Valve unit for material ejection
- Eject B (positive sort)
- Pass (negative sort)
- Sensor technology: depending on the application, simple or combined sorting technology possible (C, NIR, XRF, etc.)
- Sorting width: up to 2,000 mm
- System: belt or slide system
- Grain size: +2 to 300 mm
- Capacity: up to 200 t/h depending on grain size and bulk density
- Ejection: 2-way system
