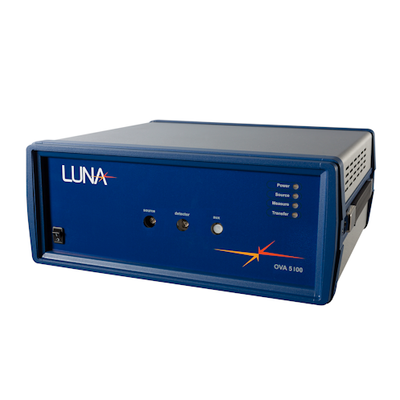

Luna - Model OVA 5100 -Optical Vector Analyzer for Comprehensive Fiber Component Characterization
The Luna OVA 5100 is a sophisticated optical vector analyzer designed for the precise measurement of loss, dispersion, and polarization in modern optical networking equipment. Ideal for use in research, product development, and manufacturing, it provides single-connection, all-parameter characterization of a diverse range of fiber components, including couplers, Fiber Bragg Gratings, and arrayed waveguide gratings. The device uses an interferometric method to measure the linear transfer function, known as the Jones Matrix, enabling accurate extraction of linear parameter measurements. The OVA 5100 is capable of sweeping a tunable laser across a wide range of wavelengths, making it an effective tool for testing and characterizing various optical devices. With comprehensive functionality and the ability to replace the OVA 5000, it is an economical choice offering high-speed and precision diagnostics for optical components.
The Luna OVA 5100 is the fastest, most accurate and economical tool for loss, dispersion and polarization measurements of modern optical networking equipment.
The OVA 5100 is the ideal device for single-connection, all-parameter characterization of fiber components from couplers to specialty fiber and everything in between (Fiber Bragg Gratings, arrayed waveguide gratings, free-space filters, tunable devices, amplifiers, etc.), all with a single sweep of a tunable laser.
The OVA 5100 uses an interferometric method to directly measure the linear transfer function (Jones Matrix), from which all standard linear parameter measurements can be accurately extracted.
- Single measurement, all-parameter analysis
- Full characterization of components in less than 3 seconds
- Complete polarization response
- With single scan, simultaneously measure loss, polarization, dispersion, phase and time domain response
- Available for C and L band, or O band
- Wavelength range :
- 1525 - 1610 nm (OVA 5000)
- 1270 - 1340 nm (OVA 5013)
- Wavelength resolution : 1.6 pm
- Dynamic range : 80 dB
- Measurements :
- Insertion Loss (IL)
- Polarization Dependent Loss (PDL)
- Polarization Mode Dispersion (PMD) and
- Second-Order PMD
- Chromatic Dispersion (CD)
- Group Delay (GD)
- Optical Time Domain Response
- Jones Matrix Elements
- Optical Phase Response
- Device length : Up to 150 m/75 m (transmission/reflection)
