Optimarin - Model FPV -Electric Flow Pressure Valve
FromOptimarin AS
Optimarin has the pleasure of introducing a new type of control valve: Electric Flow Pressure Valve. The electric FPV will provide OBS with the latest in control valve innovation, technology and valve acoustics.
Most popular related searches
ballast water treatment system
control valve
water treatment system
ballast water treatment
butterfly valve
flow control
electric actuator
ballast water
water treatment
ballast water system
- Small (DN350: 193mm)
- Light (DN350: 130kg)
- Building material
- Butterfly valve with rubber seat, bronze-alu disc
- Flow control element in stainless steel
- Electrically actuated
- Control speed fixed in actuator
- Fluctuating pressure has no impact on control
- Prepared for OptiFlow

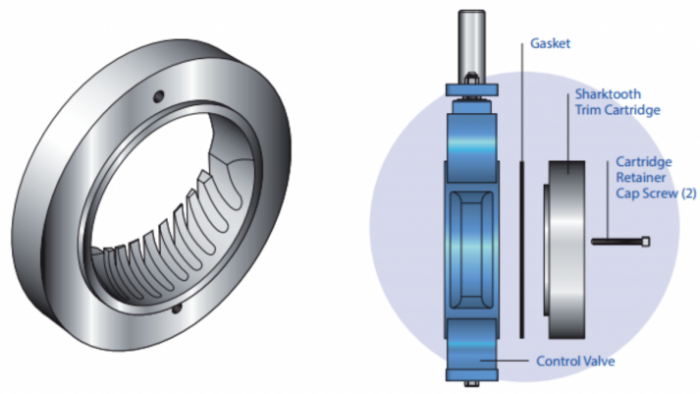

By attaching a multi tooth element to the butterfly valve body, all negative effects are eliminated and we are left with an exceptional control valve. The teeth profiles provide an equal percentage flow characteristic, which results in a high precision regulator which makes regulation in the entire control range of the valve a simple matter.
