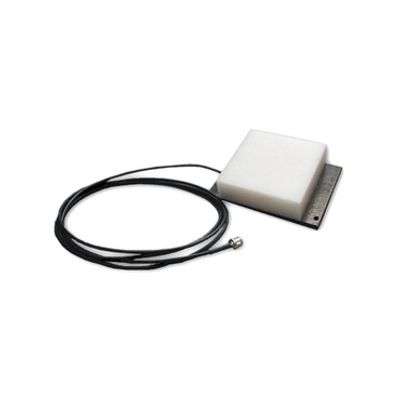

Optimum - Model ANT-IR -In Road Antenna
Imagine having the ability to communicate with your equipment that is installed in a manhole in the middle of a busy street; having the ability to not have to block traffic to retrieve your data anymore. Well then the Optimum Instruments In Road Antenna (ANT-IR) is the answer.
Our in road antenna features a rugged design which allows the antenna to be mounted directly into the pavement. The IR series antenna is waterproof with a steel base to attach the antenna securely to the road surface. Construction of the antenna uses adhesives that are resistant to JP-4, acetone, methyl ethyl ketone, motor oil, and gasoline. And its rugged construction makes it virtually tamper-proof. Our standard antenna has a TNC connector on the bottom of the mounting stem that attaches easily to the supplied 12` or 20` length of LMR195 cable. Rugged, and durable; this design makes this antenna an excellent choice for your high traffic area installations
- Installed Flush with Road Surface
- Suitable for High Traffic Locations
- Many Different Frequencies Available
- Easily Installs With Power Tools
- Best Suited For All Climates
- Available in Different Colours
- VSWR at Resonant Point 2:1 max
- Connector User Selectable
- Nominal Impedance 50 Ohmz
- Gain 3 dB
- Polarization Vertical
- Maximum Power Input 125 Watts
Mechanical
- Height ~8 cm or 3"
- Width ~18 cm or 7"
- Length ~13 cm or 5"
Environmental
- -40 to +60°C
