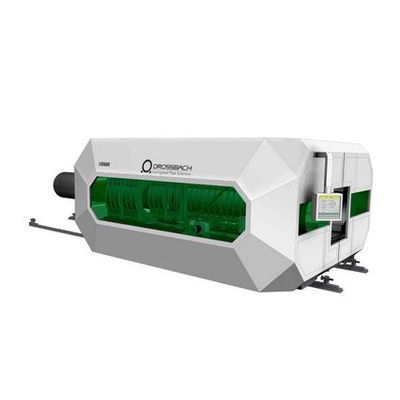

Drossbach - Model HD 800 -Optimum Start Tool for Sewage Pipe Production
Production of corrugated plastic pipes with high production speed thanks to directly water-cooled mold blocks and an integrated full vacuum system.
Most popular related searches
corrugated plastic piping
corrugated plastic pipe
corrugated pipe
water cooling
sewage pipe
plastic pipe
air conditioner
lubricant system
control cabinet
plastic piping
- Aluminium master mold blocks are carrying the mold block inserts. These are running in the machine on steel paving tiles follow the shuttle system.
- Full automatic, centralized lubrication system guarantees maintenance-free operation.
- After having adjusted, the die head is fixed to the corrugator by means of the centering ring, no afterwards alignment necessary.
- The parking station and the shuttle principle allow variable pipe length even with inline produced socket.
- Mold block inserts, fixed with quick fasteners, ensure rapid tool exchange.
- The complete tools (mold block inserts and die heads) for ID 150 up to ID 400 (6" - 16") are compatible with HD 500 and HD 1200.
- The machine can be electronically adjusted in vertical and horizontal direction.
- The complete electronic parts in the seperate control cabinet are cooled by an air conditioner.
- The spiral-mandrel die head cares for a constant quality of the corrugated pipe with a consistent even wall distribution.
- Computer-controlled operation and monitoring of the complete production process; remote control and servicing available.
- Max. mech. speed 5,5 m/min / 18 ft./min
- PE/PP output 1050 kg/h / 2,315 lbs/h
- Measurement/weight:
- Max. pipe outer diameter (OD) 800 mm / 32"
- Min. pipe internal diameter (ID) 150 mm / 6"
- Number of mold blocks (per side) 9 / 10
- Length 5600 mm / 18.37 ft.
- Width 4300 mm / 14.11 ft.
- Height (depending on extrusion height) 3200 mm / 10.5 ft.
- Length of molding area 2807 mm / 9.21 ft.
- Max. travel 4000 mm / 13.12 ft.
- weight of machine without mold blocks 19500 kg / 42,990 lbs
- waste water ID 150 - ID 600 / 6" - 24"
- drainage ID 150 - ID 600 / 6" - 24"
- rain water ID 150 - ID 600 / 6" - 24"
- PE, PP, PVC, further plastics available upon request.
