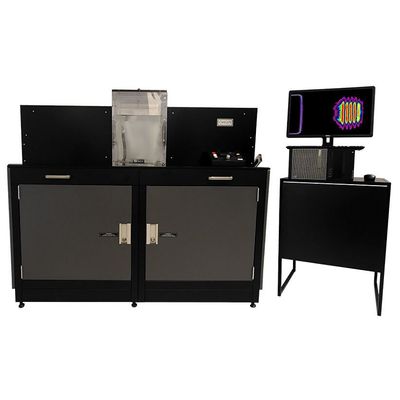

OptiSon - Model OS-12D -Schlieren Imaging System for Ultrasound Beam Analyzer
FromOnda Corporation
The OptiSon® Beam Analyzer quantifies beam plots, focal distances and total power from a single image. Power measurements correlate to radiation force balance and hydrophone - as does tomographic reconstruction for intensity. It can have higher spatial resolution than mechanical scanning and is invulnerable to high intensities or rough handling.
Most popular related searches
- Quantitative
- Eliminates standing waves
- Real-time visual advantage
- Wide dynamic range
- 3-D tomographic image
- Field of view: 9×12 cm to 3×4 cm (zoom 3:1)
- Image definition: 1392 x 1040 pixels and 12 bits
- Bandwidth: 1 to 100 MHz
- Spatial Resolution: Field of view/1390 or 50 μm (whichever is larger)
- Time Resolution: (Pulsed): 150 ns
- Dynamic Range: 30 to 60 dB
- Power measurement accuracy: ± 2% between 5 mW and 100 mW
- Tank dimensions: 33 cm (H) x 28 cm (W) x 32 cm (L)
