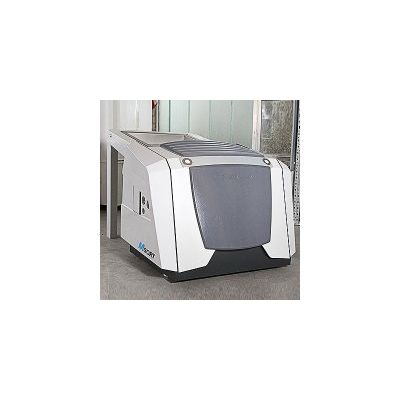

MSORT - Model AF -Optoelectronic Plastic Sorting System
The Mogensen MikroSort optoelectronic sorting system was developed in cooperation with CommoDaS in Wedel, Germany. With the Mogensen MikroSort®, it is possible to remove foreign material from previously unsortable materials, to produce products of a higher quality and to open up new markets. The improved utilization of the raw materials is not only an economical but also an ecological advantage.
- PET (beverage bottle, packing material)
- PE
- PVC (e.g. shredded window profiles)
- PP
The MSort® AF scans bulk goods on a working width of 900 mm in free fall by means of a color line camera. The respective data is evaluated by a freely programmable sorting software of an industrial computer by color, brightness and size into good product and rejected parts. The computer passes this information to 224 fast and robust compressed air valves, each of which serves one compressed air nozzle. Rejected parts are evaluated by position, shape and size and blown out of the material stream by specific jets of compressed air.
- Inexpensive sorting of strongly contaminated, broken recycling glass by color and brightness is possible (AX).
- Slightest color differences (e.g. white and half white, window pane and vitrophyre glass) are reliably detected and are available as sorting parameters (AL).
- Rejection rates of up to 50% (white glass from mixed glass or processing of CSP (ceramic material/stones/porcelain) may be realized in a continuous operation.
- The material yield is maximized by accurate detection and exact sorting.
- Fine metal parts are detected parallel to the color sorting and fed into the rejection stream.
- Thanks to the exact detection, the small distance of the nozzles to the product stream and the fast, precise triggering of the valves, the compressed air consumption is kept very low.
- Low-maintenance operation thanks to automatic cleaning.
