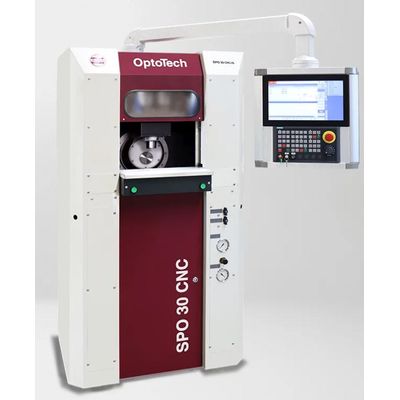

OptoTech - Model 5P0 30 CNC -Polishing Machine

• Low-Priced CNC-controlled polishing machine with oscillation movement of the polishing tool around the lens center
• 3-spindle version (workpiece spindle, dressing spindle, tool spindle)
• CNC-controlled oscillation movement in radii center
• Integrated polishing tool correction technology OCT (OptoTech Correction Technology)
• OptoTech user interface, Microsoft Windows
• Input of all parameters via dialogue menu

• Low-Priced CNC-controlled polishing machine
• Ideal for supermicro and endoscopy optics
• Energy-efficient motors: Possible energy savings up to 30% (depending on required power)

Standard cycles:

• Polishing in SynchroSpeed mode
• Dressing of polishing tools
• Other technologies available on request

• Exhaust filter system for mist collection
• Polishing tank

• Application :  Low Cost CNC-Controlled High Speed Polishing Machine for Micro Optics
• Working Range Diameter : 2 mm - 30 mm
• Working Range Radius : +/- 5 mm to plano
• Control : Siemens Sinumerik 840D Solution Line
• Dressing Spindle : Speed: 100 - 5000 rpm, infinitely variable; Interface: Flange
• Tool Spindle : Speed: 30 - 2500 rpm, infinitely variable; Interface: HD 12
• Workpiece Spindle : Speed: 30 - 2500 rpm, infinitely variable; Interface: HD 12
• Vacuum : -0.7 bar
• Air Pressure Requirement : 6 bar
• Power Requirement (others on request) : 5 kW / 400 V / 50 Hz
• Dimensions : Width: 1000 mm, Height: 1800 mm, Depth: 1250 mm
• Weight (approx.) : 800 kg
• Disclaimer : All data are subject to change without notice. Please verify details with OptoTech.
