Optromix - MX Interrogator
FromOptromix, Inc.

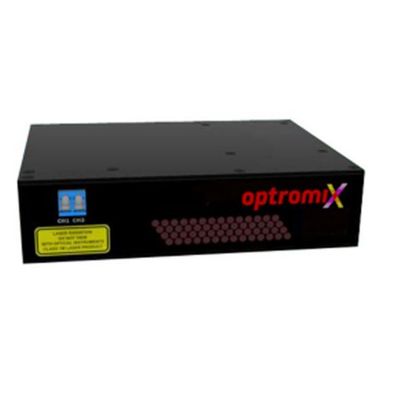

The MX interrogator is a fiber optic sensing instrument in a field deployable enclosure. Optimized for both static and dynamic FBG measurements and for the wide bandwidth range of 0.1-3.0 nm.
Most popular related searches
fiber optic sensing
fiber optic instrument
optical sensing
fiber optical instrument
optical instrument
PM10
scan sensor
- Sample rate, kHz : 100, 1000, or 2000
- Sample rate (Full Spectrum), Hz : 8
- Wavelength range, nm : 1538-1568 or 1528-1568
- Number of optical channels : 1, 2, 4, 8, 16, 24, 32
- (Synchronous Scan, No switches)
- Sensors per channel, max : up to 30
- Repeatability, pm : ± 2
- Long-term accuracy, pm : ± 10
- Connectors : LC/APC (with internal shutters)
- Operating temperature, °C : -15...+55
- Dynamic range, dB : 25
- Power supply, VDC : 5
- Dimensions, mm : 180 ? 126 ? 40
- Weight, kg : 0.64
- Communication interfaces : Ethernet (RJ45), UART port
