Optromix - Standard FBG Interrogators
FromOptromix, Inc.

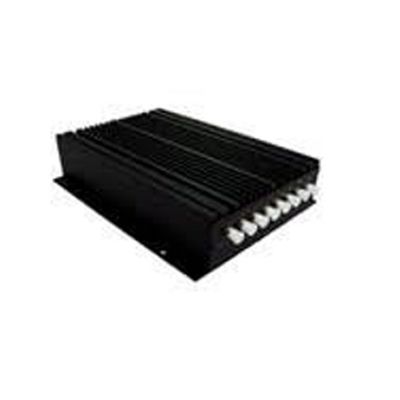

This FBG interrogator is specifically designed to characterize the spectral response of a large number of FBG optical devices
- Sample rate, Hz : 50, 100
- Wavelength range, nm : 1520-1570, 1520 - 1590
- Number of optical channels : 4 or 8
- Sensors per channel, max : up to 25
- Resolution, pm : < 1
- Long-term accuracy, pm : ± 5
- Connectors : FC/APC
- Communication interfaces : Ethernet
- Data logging, Gb : 32
- Operating temperature, °C : -30...+70
- Dynamic range, dB : 20
- Power supply, VDC : 9-36
- Consumption, W : 7
- Dimensions, mm : 293 * 190 * 66
- Weight, kg : 2.0
