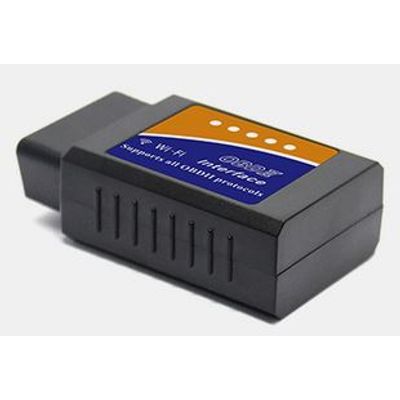

Origo - Model V03HW OBDII -WiFi Car Diagnostic Module
Works with OBD-II compliant vehicles. Clear trouble codes and turn off the MIL. Works on all 1996 to 2010 cars and light trucks sold in the United States, some 1994 and 1995 models are also ok. Software included in CD for Smartphone, PC, and iOS ( for iPhone, iPad, iTouch, Mac ). Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning.
Most popular related searches
- Small volume, highest integration of chips, proprietary appearance patent, utility model patent and software copyright.Through the CE, the FCC, RoHS certification.
- The software can do the following: Read error diagnostic codes - generic and manufacturer special, and show their meaning (the database has more than 3000 generic generations Code definition).
- Compatible software Windows version: scanmaster-elm, ScanTool.net, PCMSCAN, etc. Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc. IOS version: Auto Doctor, OBD Car Doctor, DashCommand, EOBD, etc. Version: OBDScope.
- Including: Engine RPM (RPM) The calculated load value Coolant temperature Fuel system state The speed of the car Short term fuel situation Long-term fuel situation Intake manifold pressure Spray oil ahead of time Inlet temperature Airflow velocity.
- The absolute position of the throttle valve is in the state of the oxygen detection voltage fuel system associated with the short-term fuel state OBDII.
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2(5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
- SSID WIFI-OBDII
- IP 192.168.0.10
- Port 35000
- MCU ST or PICI8F25K80
- Software Platform Android/Windows/IOS
- Operation Voltage 9V～16V
- Operation Current 65mA
- Standby Current 45mA
- Operation temperature -40°C~85°C
- Operation Humidity <60%
- Dimensions 43mm*25mm*75mm
- Interface 16pin OBDII standard interface
Ordering information
- Model Description
- V03HW-1 ST MCU
- V03HW PICI8F25K80 MCU
