ORION - Model EST-S -Turntable Type Thermostatic Chamber
Temperature Control Range [Low Temperature] : -40℃ to +25℃（80℃）. Temperature Control Range [High Temperature] : Room-temperature (RT) + 40 ℃ to RT + 80 ℃ (125 ℃). Temperature Drop Time [Low Temperature] : 60 min or less (25 ℃ to –40 ℃). Temperature Rise Time [High Temperature] : 60 min or less (25 ℃ to +80 ℃).
- New Turntable Type Thermal Test Chamber with Improved Operability
- The workpiece will attain the prescribed temperature at one revolution of the turntable inside the thermostatic chamber.
- We can manufacture the product with the number of turntable levels and partitioning that best suit your needs.
- Refrigeration circuit and thermal chamber functionality all combined in a single, compact, space saving design.
- (3.3 m² installation footprint)
- The work insertion port utilizes a side-sliding door. Reduces the temperature fluctuation inside the tank.
First in Industry! High Energy Saving Refrigeration Circuit
- Our low-temperature models have heat pump balance control (utilizing heat output) built in.
- Up to 60% in energy savings can be achieved when compared with heater controlled devices.

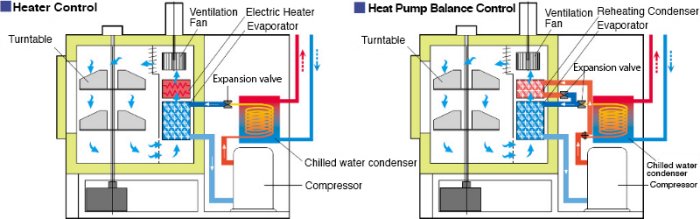

So far, existing low-temperature chambers have generally carried out temperature stability control by being cooled through a refrigeration circuit and heated with an electric heater. ORION`s originally developed Heat Pump Balance Control※1 is the ideal temperature control system which achieves wide ranging energy savings by doing away with a temperature control heater, and instead utilizing latent heat produced from the cooling process to achieve temperature control. We have achieved the greatest level of energy savings in the world for cooling chambers of 30 ℃ or lower by utilizing our Heat Pump Balance Control.
- Heat Pump Balance Control is temperature control achieved through advance control of the balance of seemingly simultaneous operation of cooling and heating functions with only a single air conditioning unit. A new technology that offers both high-precision operation along with power savings stemming from a high level control technology that is able to move heat without waste, and is able to operate even without the use of a heater.
Can be customized to fit any type of sample.Table and Front Door are Customizable
Turntables are made of low-cost but sturdy, and highly corrosion resistant SUS (stainless steel) sheet. The table inside the chamber can be manufactured to suit the customer`s work pieces.
Touch Panel for Easy Operation
Operating conditions and various settings can easily be confirmed or set on the convenient touch panel.
The touch panel is located on the front of the product where it is easy to see and operate.
The screen layout is easy to operate for any level of user.
High stability can be maintained even with a harsh inspection setup.Tracking Condensation-Related Problems inside the Chamber
ORION`s CFC-free, low purge, heatless dryer is built into the low temperature chamber. Operation can be carried out for long periods. There will be an indication on the operation panel when the desiccant column replacement period comes up.
- Engine Control Board
- Transmission Control
- Skid Control
- Suspension Control
- Power Steering
- Air Bag System
- Anti-Lock Breaking System
- Car Distance Maintenance System
- GPS System
- Keyless Entry and Door Lock System
