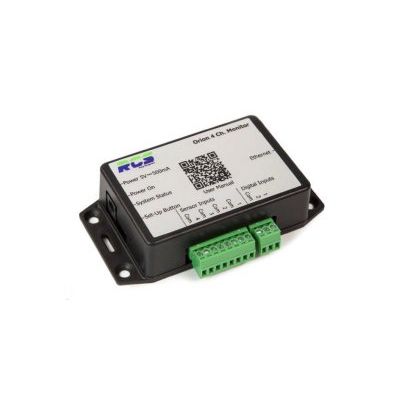

Orion - Remote Monitor

SHARE
The Orion remote monitor has been purpose-built to meet the specific demands of cloud-based monitoring solutions. This cost-effective, reliable and proven unit is designed to log and record data from multiple types of independently-controlled plant and equipment, detecting temperature, pressure, plant faults or any other information across a site and then communicating it directly to cloud-based monitoring bureaus. Available in 16 or 4 channel versions, the Orion monitors can receive a wide range of digital or analogue signals:
Most popular related searches
remote monitoring
cloud monitor
water leak
cloud monitoring
gas leak
rainwater
acoustic leak
control valve

Accurate
All Orion monitors are extremely accurate with, for example, temperature control achievable to a tenth of a degree.

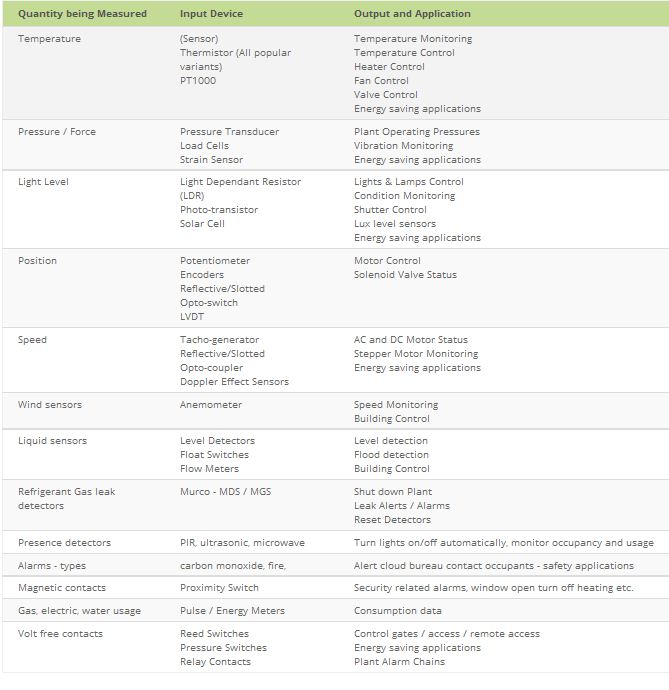

That same level of accuracy is possible whatever the application or the quantity being measured. See the table below for a full list of quantities, input devices and outputs / applications.

Portable
The low power requirement of each Orion monitor means flexibility and portability.

There are a range of options for power, from traditional mains, host appliance or battery solutions to a 5V USB or phone charger or even a cheap solar / battery pack to deliver the ultimate off-grid solution for remote locations.

Connected
All Orion’s deliver seamless and direct connectivity to the world’s best monitoring bureaus, connecting directly to the cloud via Wi-Fi, GSM or Ethernet.

And to help users with different types of equipment in situ, all are designed to integrate with the systems & equipment manufactured by leading industry names.

Features include individual alarm set points for each channel, individual alarm delays for each channel, and defrost monitor inputs with configurable recovery delays.

Analogue Inputs

Analogue inputs can be used for a huge range of sensor and transducer types, measuring functions including (but not limited to): light level; temperature; force / pressure; position; speed; sound; wind; rain; gas leak; water leak; PIR, ultrasonic or microwave; alarms; magnetic contacts; lux level; and more.

Digital Inputs

Digital inputs channels can be used for fault state monitoring of plant operating conditions, door open alarms, man trapped alarms and more.

Digital Outputs

Digital outputs can be used for simple control functions such as remote reset, valve / fan control, lighting control and more.
