Tethys Instruments SAS - HORIBA Advanced Techno

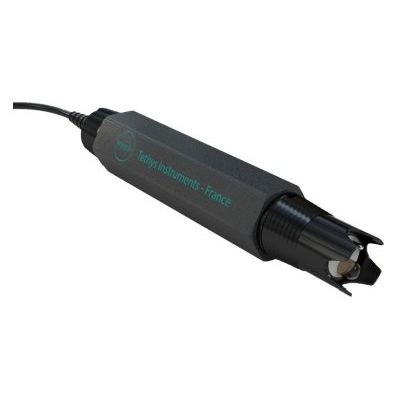

Tethys Instruments - ORP Sensor Probe
Tethys General Purpose ORP Sensor with ¾”NPT thread on both front & back is a heavy-duty ORP probe with Ryton body suitable for many industrial water applications. Mounting thread on both front and back allow for in-pipe (continuous measurement) or submersible installations of ORP Sensor. This ORP sensor offers excellent chemical and impact resistance.
Most popular related searches
wastewater treatment plant
ORP sensor
municipal wastewater treatment plant
industrial wastewater treatment plant
water treatment plant
wastewater treatment
drinking water treatment plant
industrial wastewater treatment
municipal wastewater treatment
ORP probe
- Industrial waste water treatment plant
- Drinking water treatment plant
- Other process water application
- Municipal waste water treatment plant
- Surface water application
- ORP Range: -2000 to +2000 mV
- Sensor Type: Convertible style combination ORP sensor
- Body Material: Ryton
- Sensing element: Platinum
- Reference: Double Junction with porous Teflon
- Mounting: Immersion or In-Line
- Operating temperature Range: 0-80 °C
- Maximum operating pressure: 100 psi
- Integral Sensor Cable Length: 6 meter
- Mounting Thread on Sensor Body: ¾” NPT threads, front & back
ELORP:
- ORP online electrode
- Range: -2000 mV – +2000 mV
- 6 meters of cable
