OrtolanModel SB -Stone Burier Tiller

SHARE

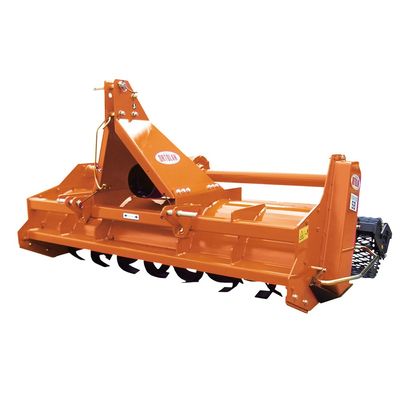

Stone Burier series SB For Tractors from 30 To 75 CV (22-56 KW). The stone burier Series SB  is designed to work stony soils in order to improve their preparation not only in agriculture, but also in greenhouses, parks, gardens and golf courses. During processing, thanks to a special selection system, the stones present in the ground are deposited on the bottom while the sieved soil layer falls on top. The stone burier Series SB is available in 5 models in different working sizes of 120, 140, 165, 185, 205 cm. Each milling machine is equipped with: single speed 540 rpm reducer, automatic chain tensioner, safety clutch cardan, rotor with 6 blades per flange (helical), depth adjustment roller, stone guard, 1st and 2nd category universal attachment.

Most popular related searches
  • CE standard equipment
  • Speed reducer 540 rpm (rotor rpm 220 rpm)
  • Cardan with safety clutch 1 ”3/8 z6 connection
  • 1st and 2nd category adjustable tractor hitch
  • Available rollers: cage – net – packer
  • Rear PTO 1 ”3/8 z6
  • Helical hoes (side hoes facing inwards)
  • Chain transmission in oil bath
  • Automatic chain tensioner
  • Rotor with six blades per flange
  • Sorting grid

Power

From 30 to 75 HP.

From 22 to 56 KW.

Weight

From 465 kg to 860 kg.

Measures

From 120 cm to 205 cm working width.

From 147 to 239 cm transport width.

Depth

Working depth in soil tillage: 15 cm.
