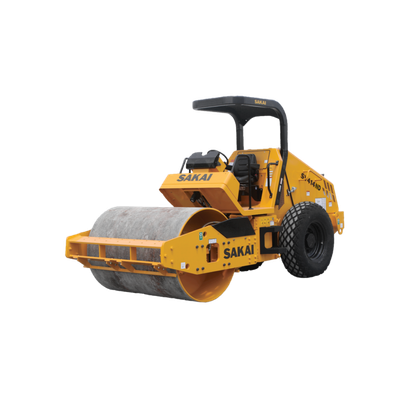

Sakai - Model SV414ND -Oscillatory Soil Compactor

Building on SAKAI’s renowned reliability, durability, and ease of use, the SV414ND features an advanced gear-driven oscillation system that ensures superior longevity and reduced maintenance compared to competitor belt driven osc. Its intuitive control layout, with traditional analog switches and knobs, offers precise command and a reduced learning curve for new operators, avoiding complex failure-prone touchscreens. With a heavy-duty center hitch, this SAKAI compactor maximizes uptime and operator confidence, delivering a powerful, user-friendly, and productive solution for all soil compaction needs, including the most sensitive job sites.

Reliable. Easy-To-Use. Durable.

• 67"
• 16,250 lbs
• 74 HP Cummins

• NEW: Selectable gear-driven oscillation & vibration in one machine, no belts!
• Traction control system
• High centrifugal force outputs
• Several amplitude and frequency setting combinations
• All vibration controls at instrument panel
• Heavy duty center hitch design
• Superior shock isolation system
• Independent drum vibration
• Standard safety equipment: ROPS, retractable seat belt, horn, backup alarm, operator deck hand rails, electric parking brake w/ interlock, & foot brake

• Medium production soil compaction jobs
• Cohesive soils (clay, silt)
• Granular soils or rockfill (sand, gravel, crushed rock)
• Roadway and parking lot subbase
• Embankments
• Building foundations
• Commercial and industrial tracts
• Road widening
• Subgrade & subbase
• No-vibe jobs (compaction over utilities, compaction near historic structures or sensitive equipment)

• Lug or tractor tires (in lieu of standard diamond tread)
• LED strobe light / beacon
• LED work lights kit
• Cab with air conditioning
• Mirror kit (included w/ cab)
• Adjustable vulcanized rubber scraper blade
• Idle shutdown
• Fire extinguisher
• Extended warranty: 5 years / 5,000 hours (powertrain & full available)
