Wedge Wire Screen Tube

• Wedge Wire Screen Tube Tape
• wedge wire pipe well screen
• Wedge wire cylinders
• Wire wrapped V well screen
• Wedge wire pipe with flange

Wedge Wire Screen Tube Processing

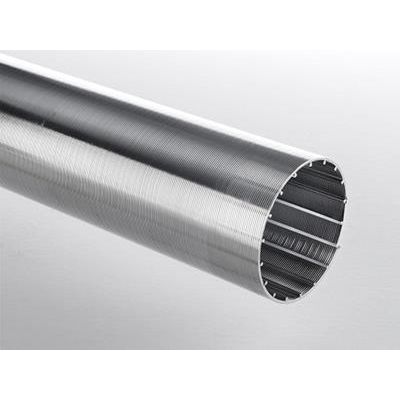

Wedge wire screen tube is made of welding V-shaped profile wire by Wrapping Cylindrically around support rods under automatic specialized wedge wire screen machine. Each profile wire and support rod is contacted by resistance welding. Support wire can be inside or outside according to flow direction ,wedge wire screen tube’s slot range from 0.2 to 5mm.

Wedge Wire Screen Tube Material

When select stainless steel grade that must endure corrosive environments, austenitic stainless steels are typically used. The most common types of stainless steel for welded wire screen are grades 304 304L 316 316L.

Wedge Wire Screen Tube Specifications

• Slot size: 0.2 mm to 5 mm
• Pipe diameter : 25 mm to 2500 mm
• Pipe length : up to 12 m

The wire details please check the Profile Wire & Support Wire Specifications Table.(PDF)

The screen tube details please check the Wedge Wire Screen Pipe Specifications Table.(PDF)

Wedge Wire Screen for Outside to Inside Filtration Flow

Standard

• Power plants
• Fish hatcheries &Desalination plants
• Firefighting &Drainage channels
• Potable water and Drinking water plants
• Desalination plants
• Water intake &water treatment
• Separating,Filtering,Drying
• Oil-water separation
• sugar process &rotating pulping
• water well production,
• food and beverage,
• oil and gas,
• pulp and paper,
• mineral and aggregate processing,
• refining and petrochemical.


• V type wire, no plugged
• No move part, simple to install
• Low maintenance costs
• Economical and applicable type, long life
• Cost effective
• High precision sizes
• High mechanical strength, lightweight construction
• Excellent filtration performance
• Minimizes clogging
• Maximum flow rates
• Resistant to temperature variations

• Material eg. Grade 304
• DN eg. 219mm
• Length eg.1000mm
• Slot eg. 0.30mm

Wedge Wire Screen Tube Packing

Wedge wire screen tube is wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.
