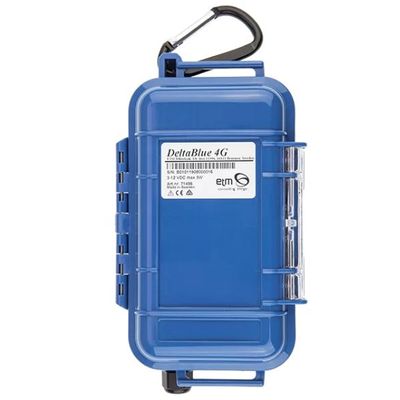

ETM - Model DeltaBlue -Outdoor Battery Powered 4G Data Logger & SMS Alarm

• Up to 3 years battery life
• Integrated 7-channel data logger
• Integrated 2G/3G/4G wireless modem
• Integrated temperature, humidity, pressure sensor and accelerometer
• Pre-configured for the most common sensor types with 3.6V, 5V & 16V power feed.
• Easy access to logged measurements via ETM’s IoT Cloud Dashboard (EWO)
• Delivered with battery, SIM card & integrated GSM antennas.
• Easy integration to SCADA and telemetry systems

• Low cost and low maintenance
• Immediate notification via WEB, SMS or email when serious event occurs
• Reduces down time and minimizes damage on equipment
• No need for fixed communication or power
• Multiple pre-configured in & outputs for easy and fast installation
• Easy access to logged measurements via ETM’s IoT Cloud Dashboard (EWO)
• Remote user friendly configuration via ETM’s IoT Cloud Dashboard (EWO)

Part Number: 71504 (internal antennas, without GPS)

Model: Delta Blue #71504/#71505

I/O Connections (8 lead cable with free ends)

• I/O 1 (Brown lead): Digital input or pulse counter
• I/O 2 (Blue lead): Digital input or Analogue input 4-20mA configurable with dip-switches
• I/O 3 (Yellow lead): Digital input or Analogue input 4-20mA configurable with dip-switches
• I/O 4 (Green lead): Digital input or Analogue input 4-20mA configurable with dip-switches
• I/O 5 (Red lead): Digital input or Analogue input 4-20mA configurable with dip-switches
• I/O 6 (Black lead): Analogue input 0-5 VDC or 0-10 VDC configurable with dip-switches
• Sensor feed (Orange lead): 3.6 VDC, 5 VDC or 16 VDC configurable with rotary switch
• Ground (Grey lead)

Logging channels
Maximum 7 simultaneous channels, max logging frequency 1/min

Cellular
2G , 3G and 4G
LTE: 700/800/850/900/1700/1800/1900/2100/2600 MHz
(band 1, 2, 3, 4, 5, 7, 8, 12, 18, 19, 20, 28)
UMTS: 800/850/900/1700/1800/1900/2100 MHz
(band 1, 2, 4, 5, 8, 9, 19)
GPRS: 850/900/1800/1900 MHz

Antenna Cellular:
Integrated cellular antenna

Internal sensors

Temperature: -40°C – +80°C, accuracy at 25°C ± 0.5°C

Humidity: accuracy ± 3%

Barometric pressure: 300-1100 hPa, accuracy ± 0.25%

Accelerometer:  3-axis motion sensor

Battery
3.6V, 14Ah ER34615M battery with 2-pin connector

Power consumtion
600 mA (rated), <150mA (transmitting), <35uA (sleep)

Battery life time
Up to 3 years battery life time with internal sensors logging every hour and data transmission over 4G cellular network every four hour.

Operating temp
-30°C to +70°C

Weight
340 g

Size
70 x 99 x 47 mm excluding cable grommet

Casing
Ventilated IP67 casing in Polycarbonate with Nitril-sealing and hinges in stainless steel.

Accessories
Temperature sensor, temp/humidity sensor, depth pressure sensors, mounting bracket in stainless steel, replacement 14Ah battery

Connectivity
We can deliver the DeltaBlue with IoT SIM cards which roaming world wide.

ETM IoT Cloud Dashboard (EWO)
The ETM IoT Cloud Dashboard (EWO) is tailor made for the DeltaBlue products. DeltaBlue will send the logged data automatically to EWO which display the data in easy readable graphs which can be exported to Excel or other formats. EWO also offer remote management of the DeltaBlue so you can change the complete configuration in the DeltaBlue unit remotely with any need to visit the installation site.
