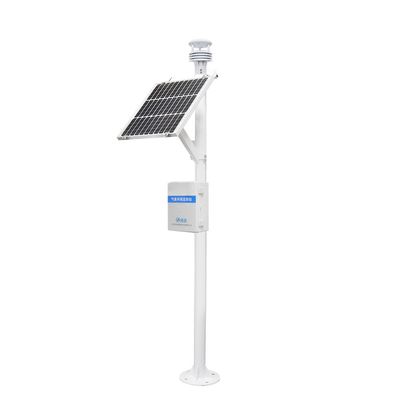

Fengtu - Model FT-CQX5 -Outdoor Weather Station

Compared with traditional ultrasonic weather stations, our products overcome the need for high-precision timers, and avoid inaccurate measurements caused by sensor start-up delays, demodulation circuit delays, and temperature changes. The device innovatively uses a five-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, temperature, humidity, air pressure, etc., and can realize 24-hour continuous online monitoring of outdoor meteorological parameters. One-time output to the user.

1. The ultrasonic probe is hidden in the top cover, avoiding the interference of rain and snow accumulation, and avoiding natural wind blocking (utility model patent, patent number ZL 2020 2 3215713.X)?
2. The principle is to transmit continuously variable frequency ultrasonic signals, and detect wind speed and direction by measuring relative phase (invention patent, patent number ZL 2021 1 0237536.5)?
3. Five-element integrated sensor of wind speed, wind direction, temperature, humidity and air pressure (utility model patent, patent number ZL 2020 2 3215649.5)?
4. Standard GPRS; optional RJ45, Ethernet, 4-20ma, Lora transparent transmission, 4G transparent transmission, Bluetooth, 485 to USB and other transmission methods
5. Two-meter carbon steel bracket, the top can be directly connected to the sensor without a flange (utility model patent, patent number ZL 2020 2 3211795.0)
6. The sensor shell is made of imported ASA material, which is more effective against salt spray and other environments, and the protection level reaches above IP65

1. Wind speed: Ultrasonic measurement principle, 0~60m/s (±0.1m/s) resolution 0.01m/s; (invention patent, patent number ZL 2021 1 0237536.5)
2. Wind direction: measurement principle ultrasonic, 0~360° (±2°); resolution: 1°; (invention patent, patent number ZL 2021 1 0237536.5)
3. Air temperature: Measuring principle Diode junction voltage method, -40-60°C (±0.3°C), resolution 0.01°C; (Calibration certificate of Beijing Meteorological Bureau)
4. Air humidity: measuring principle capacitive, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate of Beijing Meteorological Bureau)
5. Atmospheric pressure: Measuring principle piezoresistive, 30-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)
6. Collector power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, collector power supply: DC5V±0.5V peak current 1A,
7. Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V
8. Solar power supply, equipped with lead-acid battery, optional 30W 20AH/50W 40AH/100W 100AH. Charge controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%
9. Data upload interval: adjustable from 1 minute to 1000 minutes
10. 7-inch Android touch screen, screen size: 1024*600 RGB LCD
11. The whole machine has obtained the calibration certificate of the National Meteorological Measurement Station
12. The whole machine has obtained a utility model patent, the patent number is ZL 2020 2 3208599.8
13. The production enterprise has ISO quality management system, environmental management system and occupational health management system certification
14. The production enterprise has  a computer software registration certificate
15. The production enterprise is a 3A credit enterprise
