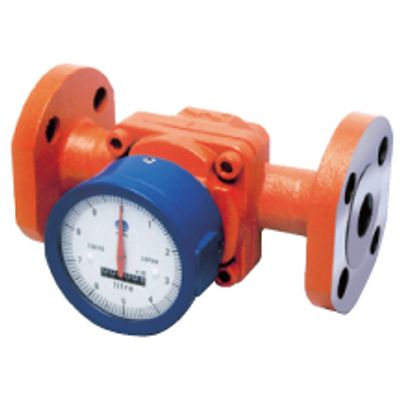

OVAL - Model Flowpet-NX -Positive Displacement Flowmeters
FromOVAL Corporation
Inexpensive positive displacement flowmeter mainly intended for measurement of fuel to boiler. Field check of total flow is possible with mechanical counter.
Most popular related searches
- High accuracy: ±0.5% RD
- Power supply unnecessary (Mechanical counter)
- Nominal size : 20, 25, 40, 50mm
- Connection : JIS 10K Flange
- Flow range * : 80 to 24000L/h (5 types)
- Operating temp. range : 0 to 120°C
- Max. operating pressure : 1.18MPa
- Accuracy : Within ±0.5% of reading
- Power supply : Not necessary (Power supply is required for output furnished model.)
- Body material : FC250
- Output : Pulse (Option)
- Configuration : Output available model (non-explosionproof only), IP65 or equivalent
- Applicable fluids : Kerosene oil, light oil, heavy oil, etc.
