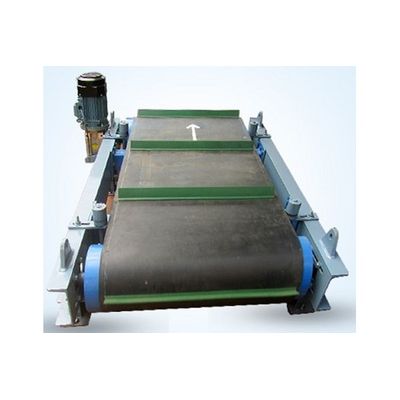

Electro Flux - Over Band Permanent Magnetic Separators

Electro Flux Over Band Permanent Magnetic Separators are non-electric suspended type separators which does not require any external power source. The tramp iron contains an inside material which is conveyed under the magnet attracted and its force will pull the iron particles to the face of the magnet. Iron particles attracted through the self-cleaning method are automatically and continuously removed from the permanent magnet by the belt that travels around the magnet which throws them to the chute.

• Cross belt magnetic separators – type by position of the equipment over the conveyor.
• Inline Magnetic Separators

Electro Flux Over Band Permanent Magnetic Separators runs without any external power with no chances of break down and the need for maintenance. The separator adapts to any belt width and has uniform magnetic strength with high durability. The Over Band Permanent Magnetic Separators can be customized in different heights in order to produce the required magnetic strength

Self-cleaning type uses a two-pulley design. Self-cleaning magnets are mounted in line with the material flow, while cross belt self-cleaning magnets remove the ferrous materials over the side of the conveyor.

• Shaft mounted speed reducer
• Heavy cleated rubber belt
• Self-aligning sealed bearings
• Four point suspension
• Rugged structural steel frame

Electro Flux Self-Cleaning Separators are designed for installation over conveyors where tramp iron contamination exists and needs to be removed for protection of subsequent processing machinery or providing a cleaner product. The self-cleaning type uses a two-pulley design. Parallel self-cleaning magnets are mounted in line with the material flow, while transverse self-cleaning magnets remove the ferrous materials over the side of the conveyor.

Electro Flux Self-Cleaning Magnet is available in permanent Magnet and Electro Magnet.
