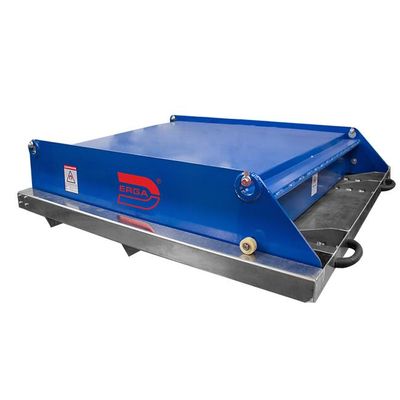

Erga SuspendMag - Model M -Overbelt Magnetic Separator
FromERGA
Suspended magnetic separator with mechanical cleaing for removal of large metal inclusions from material flows transported by conveyors.
Most popular related searches
magnetic overband separator
magnetic separation
magnetic overband
suspended magnetic separator
overband separator
iron separator
safety regulations
industrial safety
chemical hazard
belt conveyor
- Efficient recovery of large strongly magnetic impurities
- Removal area depth up to 450 mm
- Mass of recovered metal up to 40 kg
- Easy assembly and operation
- Easy cleaning
- Protection of crusher, shredder from damage and early wear
- No power consumption
- Powerful permanent magnetic system
- ERGA SuspendMag M overband magnetic separator with mechanical cleaning ensures quality removal of large strongly magnetic inclusions with mass up to 40 kg from material flow from distance up to 450 mm.
Efficient recovery of large strongly magnetic impurities
ERGA SuspendMag M overbelt magnetic separator has powerful permanent magnetic system, ensuring maximum removal depth up to 450 mm for strongly magnetic inclusions. SuspendMag M is especially effective when applied for material with moderate contents of large strongly magnetic inclusions weighing up to 40 kg. In case of high content of metal impurities, we recommend using ERGA SuspendMag A suspended self-cleaning magnetic iron separator.
Protection of crusher, shredder from damage and early wear
The magnetic separator is installed over conveyor or at discharge from the conveyor belt. Simple in appearance SuspendMag M design with powerful magnetic system inside prevents damage to crusher or shredder with all the resulting financial losses.
No power consumption
ERGA SuspendMag M magnetic separator does not consume any electric power for magnetic field generation and differs from electromagnetic analogs in significantly greater reliability. The guaranteed shelf life of the properties of the magnetic system, subject to operating rules, is 10 years.
Easy assembly and operation
ERGA SuspendMag M overbelt magnetic separator is integrated into existing process line and does not require any considerable redesign of the installation site.
Easy in maintenance, SuspendMag M operates without any additional settings, lubrication and close attention from the personnel.
Easy cleaning
The magnetic separator has moving ribs making mechanical cleaning easier: it is enough to push the rib out of the magnetic field and metal impurities fall off.
Conformity with industrial safety regulations
The equipment corresponds to the requirements of industrial safety regulations and rules valid and can be applied at explosive and flammable chemically hazardous enterprises and facilities, including mines with explosive proof, coal dust and methane access.
