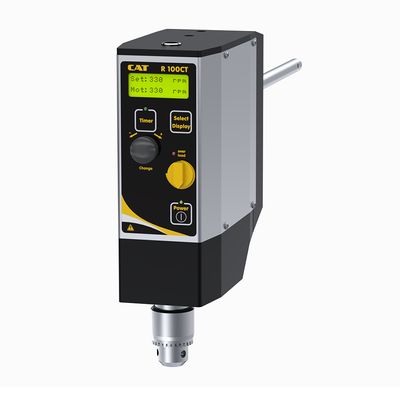

CAT - Model R 100CT -Overhead Stirrer
The R100 series contains our most powerful overhead stirrers. They are perfectly suited for heavy duty applications with high viscosity media as well as volumes up to 200l.
Most popular related searches
- Backlit display
- Hollow shaft
- Overload & overheat protection
- Switch-off timer
- Programmable torque limitation
- Progammable motor speed limits
- RS232-Interface for computer control
- Speed range [1/min]: 10 – 500
- Digital display type: LCD
- RPM display: Yes
- Timer display: Yes
- Timer function: Yes
- Absolut torque display: Yes
- Relative torque display: Yes
- Torque, max. [Ncm]: 600
- Stirring quantity, max. (H2O) [l]: 200
- Viscosity, max. [mPas]: 100.000
- Chuck range [mm]: 1 – 10.5
- Chuck type: keyed
- Hollow Shaft: Yes
- Power supply [V]: 230VAC 50Hz, 115VAC 60Hz
- External power supply: Yes
- PC interface: RS 232
- Analogue input: TTL
- Analogue output: TTL
- Weight [kg]: 5.5
- Width [mm]: 78
- Height [mm]: 250
- Depth [mm]: 200
- Protection class according to DIN EN 60529: IP42
- Overheat protection: Yes
- Overload protection: Yes
- Motor type: DC
- Shaft rotation: CCW
- Operation mode: Short-term operation
- Certification: CE
