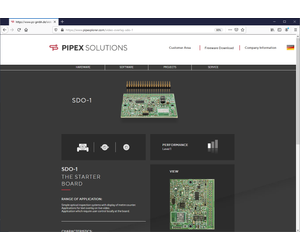

Video Overlay - Model SDO-1 -overlay of measured value in live video
RANGE OF APPLICATION: Simple optical inspection systems with display of metre counter. Applications for text overlay on live video. Application which require user control locally at the board
CHARACTERISTICS:
• for SD-video (PAL/NTSC)
• text display with black fringed white characters for optimal readability
• 16 lines of 30 characters length
• quadrature encoder input
• display of the measured value
• display of custom text
• user control locally via push-button or via serial interface
FEATURES:
Overlay of measured value in live video (quadrature encoder input on board) to display position, RPM, speed for all types of machinery
and equipment with live camera.
Display of fixed text, e.g. camera identifier, location, etc. for surveillance technology.
Display of free text feed via the serial interface, for use with video ads with changing text information, such as weather, snow conditions,
road conditions for camera info display.
