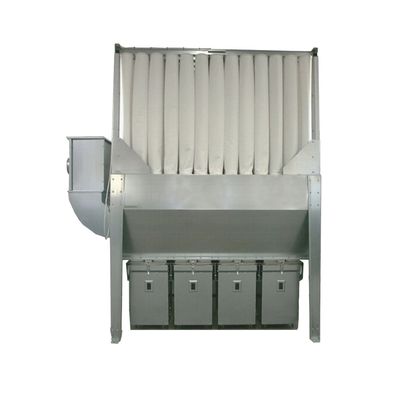

ACword - Model FJ -Overpressure Filtration Unit
Filtration units are used for separation of waste material from woodworking technology. Steel galvanized structure is equipped by filter hoses from high quality polyester material. Separated waste material falls down into steel containers. Modular design allows multiply capacity. Each module has own vibration motor for filter regeneration. According to ventilator and filter unit arrangement we can divide filtration units to:
Filtration unit – overpressure
In overpressure arrangement is ventilator installed prior to filter unit. Air with extracted waste material is transported to filter unit through ventilator. Filter regeneration is provided by stopped ventilator.
Basic equipment of FJ module
- 60 or 78 filtration hoses with diameter of 160 mm and length of 1500, 2000, 2500, and 3000 mm
- vibration motor for filter regeneration
- inlet chamber for air speed decrease and herewith increase of filtration efficiency
- steel containers for waste collecting
- inspection door
Filtration units FJ are delivered in opened and closed design, closed design can be installed outside the building and filtered air can be returned back into working area.
Advantages
- modular design allows extension of filter unit
- automatic filter regeneration by vibration motor
- indoor and outdoor installation
- easy installation according to instructions
- return of warm filtered air back to working area
- minimum maintenance requirement
Closed type contains in addition
- dry fire extinguishing system
- safety flap for explosion release
