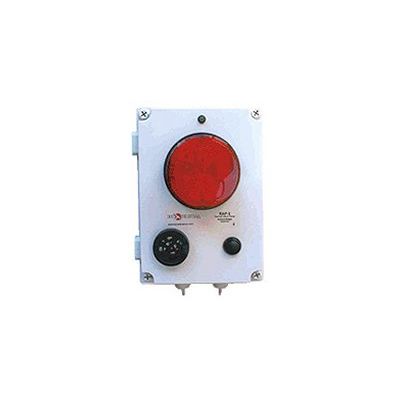

Spectrex - Model RAP-2 -Ozone and VOC Monitor Alarm Panel
The RAP-2 Remote Alarm Panel is for alarming when signals from ozone and VOC monitors reach preset limits or set points. The alarms are a red strobe light and a loud audible alarm (90 dB at 3 meters). There is also a digital readout in PPM of ozone. The RAP-2 also outputs its input signal in 4.20 mA form for building automation systems and other applications requiring long signal paths. The RAP-2 is powered by 14-30 VAC or DC. This remote alarm panel is usually used with the C-30Z, C-30ZX, EE-2, and 0S-4. It can be used with some other instruments by special order.
Most popular related searches
VOC monitor
VOC monitoring
food process plant
ozonation
ozone monitoring
ozone analyzer
swimming pool
polycarbonate enclosure
swimming pool ozone
laundry ozone
- Swimming pools.
- Laundries using ozone.
- Large noisy factory environments.
- Casinos and other ozonated public areas.
- Agricultural storage areas.
- Farms.
- Food processing plants.
- Rugged polycarbonate enclosure with hinged door.
- Accepts input of 0-2 VDC, 4-20 mA and relay closure.
- Loud pulsating audio alarm with silencing button.
- Very bright red strobe light.
- 4-20 mA signal and relay outputs.
- Alarm set-point adjustment.
- Uses easily available 14-30 VAC or DC power.
- Signals from instruments can be transmitted by inexpensive twisted pair.
- 125 × 175 × 77 mm (5 × 7 × 3 in).
