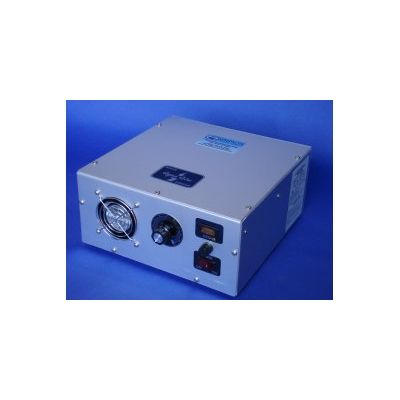

Simpson - Model SW800 -Ozone Generator

• Manual Output Adjustment
• Fuse Protected
• 2 year warranty on all components

• Water Treatment Capacity - 38 litres/min (10 USGPM)
• Ozone Output - 0.8 gr./hr (dry air @ 10 scfh)
• Ozone Output - 2.4 gr./hr (oxygen @ 10 scfh)
• Cabinet - Heavy Guage (0.05") Aluminum
• Power Supply - Class B/UL506
• Amp Draw @ 120v/60hz - 1.2
• Power @ 60/50 hz - 120-220v
• Cooling Fan - 30 CFM
• Size (wxdxh) - 33 x 33 x 13 cm
• Weight - 4.1 kg
• Approval - CE, Optional CSA

Typical applications include drinking water treatment, spa’s and hot tubs.
