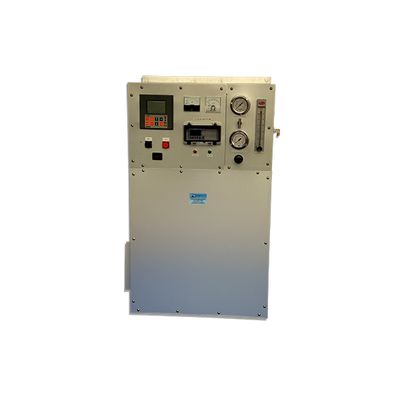

Simpson - Model SW120M -Ozone Generator

SHARE

120 gr/hr Air Cooled High Frequency Corona Discharge Ozone Generator. The SW120M generator is used in all ozone applications including but not limited to Potable water, industrial & municipal wastewater, pools, cooling towers, industrial applications, aquaculture.

Most popular related searches
ozone generator
ozone generation
corona discharge ozone generator
water treatment ozone generator
cooling tower industry
air flow meter
ozone water treatment
corona discharge ozone
drinking water industry
ozonation
  • SW120M Ozone Generator. Separate oxygen concentrator required. For systems without on site compressed air a compressor kit is required.
  • Silent, Rugged, Reliable, Cost effective, Compact and Light Weight, Ceramic, Air cooled and power efficient.
  • 1.5 lbs/day at 9.2% and 3 LPM : 8 lbs/day at 4.7% weight and 30 LPM (Oxygen or Concentrator)
  • No exposed high voltage safety hazards.
  • Precise ozone control using Pulse Density Modulation (PDM) via potentiometer, 4/20 ma or 0-10vdc.
  • Precise Control with Turn-down to 1%
  • Useful pressure range: 5-100 psi.
  • Optional air conditioner (refer to picture)
  • Nema 4 rated panel with hinged door for easy service and maintenance
  • CSA-Optional, CE-Yes
  • One year limited factory warranty
  • Gr/hr with PSA Oxygen - 120 Gr/Hr @ 20LPM of Oxygen
  • Energy 1050 w
  • Power @ 60/50 hz - 120-240v
  • Automatic 4-20ma Control - Yes
  • High Temp Limit - Yes
  • Air Flow Meter - Yes
  • Footprint(wdh) cm - 61 x 41 x 92 OR (24"x16"x36")
  • Weight - 98.8 kg or 218lbs
