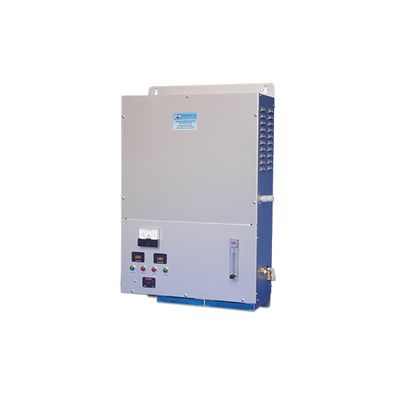

Simpson - Model SW20M -Ozone Generator

This wall mount corona discharge ozone generator is based on a patented generator module that features a robust ceramic dielectric that provides high performance and reliability. It can be ordered as air or water cooled and comes with a full set of features and options.. The system generates 20 gr/hr on 5.4 LPM of 92% oxygen. It comes with an integrated flow meter (0-20 LPM) and an ampere meter in a lightweight aluminum cabinet . A standard two year warranty is provided.

Options:

• Water Cooled
• 220V/50hz
• Metal Enclosure inc. Pressure Gauge
• 4-20 ma output control
• 0-100% output control

Features:

• Best results achieved at 4.5 psi pressure
• Unit has high temp shut off that will shut the system down if temperatures exceed 130 oF or 54 oC
• Connections are ¼” Stainless Steel compression
• Ozone indicator light indicates ozone system generating ozone
• Alarm light indicates alarm conditions and stopped generator
• CSA-Optional, CE-Yes
• One year limited factory warranty

• Gr/hr @ 5.4 LPM PSA Oxygen - 20.0
• Energy - 200 w
• Amp draw @120v/60hz - 2.8
• Power @ 60/50 hz - 120-240v
• Manual Variable Control - Optional
• Automatic 4-20ma Control - Optional
• High Temp Limit - Yes
• Air Flow Meter - Standard
• Water Cooling - Optional
• Cooling Water Shutoff - Automatic
• Air Cooling - Yes
• Size (h x w x d) - 61 x 43 x 18 cm
• Weight - 4.5 kg
