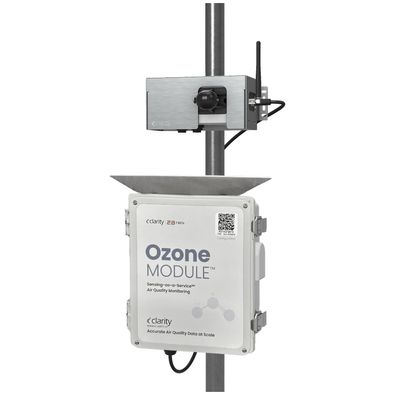

Clarity - Ozone Module
The Clarity Ozone Module is based on best-in-class technology from 2B Technologies, and provides accurate measurements of ozone in air over a wide dynamic range extending from a few parts-per-billion by volume (ppb) to an upper limit of 100 parts-per-million (ppm) based on the well-established technique of absorption of ultraviolet light at 254 nm.
Product Details
The Ozone Module integrates seamlessly into Clarity networks with an ozone monitoring technology has been approved by the U.S. Environmental Protection Agency as a modification of Federal Equivalent Method (FEM): EQOA-0914-218. The Ozone Module is well suited for use by states and other monitoring agencies under 40 CFR Part 58, Ambient Air Quality Surveillance, for monitoring for compliance with the Clean Air Act.
Technical Specifications
Air Quality Measurements
- Parameter: FEM-Grade Ozone Concentration (ppb)
- Technology: UV Absorption at 254 nm, single beam
- Range
- Range: 0-500 ppb
- Resolution: 0.1 ppb
- Performance
- < 75 ppb: 1.5 ppb
- >= 75 ppb: 2% of measured value
Additional Ozone Module Parameters: Atmospheric Pressure (torr, mbar, psi) | Ambient Temperature (°C, °F, K)
Data Flow
- Measurement Frequency (Adjustable)
- Default: Once every 15 minutes
- Sampling synchronized with Node-S to occur simultaneously with other measurements; see Node-S specifications for details
- Data Retrieval from Cloud
- Clarity Dashboard (Web App)
- RESTful APIs (Programmatic Access)
- Device to Cloud Communication: Connectivity provided by Clarity Node-S (SIM card and service included)
Operating Conditions
- Operating temperature: 0 – 50° C (20 – 30° C for FEM)
- Flow Rate Limits (volumetric):
- Minimum: 0.6 Liter/min;
- Nominal: 1 Liter/min;
- Maximum: 1.5 Liter/min
- Temperature and pressure corrected: Yes
- Calibration: NIST traceable, annual recalibration recommended
Power
- Externally Powered
- Ozone Module is powered through Node-S
- Companion Node-S requires external power when paired with Ozone Module.
- Power Consumption: 6W (companion Node-S not included)
Dimensions
- Dimensions: 30.9 cm (H) × 25.4 cm (W) × 13.3 cm (D)
- Weight: 6.9 lb (3.13 kg)
Mounting & Deployment
- Connect to Node: Plug module into Clarity Node-S; Node-S will reset and automatically recognize the module
- Sensor Siting: Install sensor in an open area with unobstructed air flow where ambient O3 concentration can be evaluated
- Mounting: Use a mounting bracket to affix to a pole or another secure foundation
