QINSUN - Model 1 -Ozone Resistance Tester FR-1217 Ozone Aging Test Chamber

The content of ozone in the atmosphere is very small, but it is the main factor for rubber cracking. The ozone aging box simulates and strengthens the ozone conditions in the atmosphere, studies the effect of ozone on rubber, and quickly identifies and evaluates the anti-ozone aging performance of rubber and antiozonants. The method of protective efficiency, and then take effective anti-aging measures to improve the service life of rubber products.

The main function:

Ozone resistance testing machine FR-1217 ozone aging test box is used to test the crack resistance of rubber products under ozone environment. performance.

main feature:

Ozone Resistance Tester FR-1217 Ozone Aging Test Chamber The ozone gas generated by the silent high-efficiency ozone generator and a certain amount of treated air are mixed in the exchanger and sent to the test chamber, and the ultraviolet detector will continuously detect on-line. The ozone concentration is fed back to the ozone generator control system, so that the control system can effectively control the occurrence of ozone according to the set value, so that the test chamber maintains a suitable ozone concentration, and works by the heating and humidifying system to meet all test conditions.

fulfill the standard:

Compliant with standards: JIS K 6259 ASTM1149 ASTM1171 ISO1431 DIN53509 GB7762 GB/T13642

Widely used in measurement and quality inspection; rubber and plastics; automobile production; wire and cable; packaging materials; instrumentation; medical equipment; civil nuclear energy; civil aviation; For quality inspection.

technical parameter:

Model FR-1217

The ozone concentration range is adjustable from 0 to 1000pphm

Relative humidity above 60%RH

Temperature RT+10～+70℃

Ozone generation method Ozone generator or ultraviolet absorption method

Air velocity in the box over 2 feet/sec

Ozone concentration fluctuation 10%

Box content 500×500×600mm

Inlet air flow A.0-6 cfm; B. 10-20 cfh

Ozone concentration fluctuation 10%

Weight 250kg

Power supply 1∮, AC220V, 15A

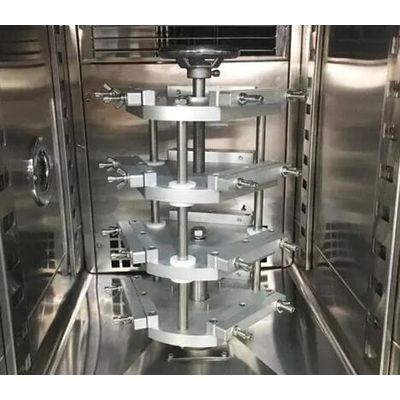

Accessories Static Tensile Fixtures 6 Groups

Ozone resistance testing machine manufacturer, ozone aging test box price, ozone aging testing machine manufacturer Shanghai Farui Instrument provides high-quality products, and technical services are free on-site installation training.
