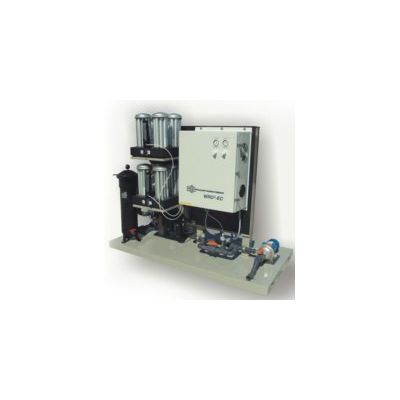

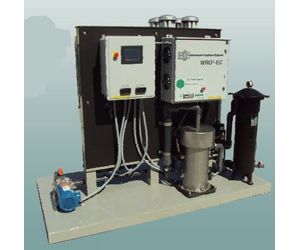

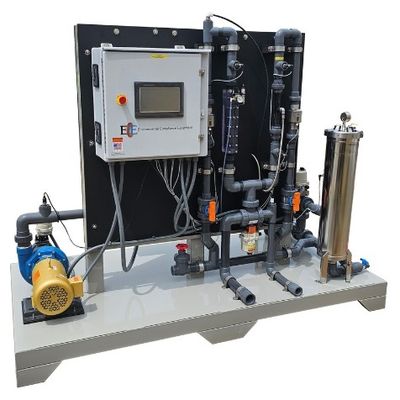

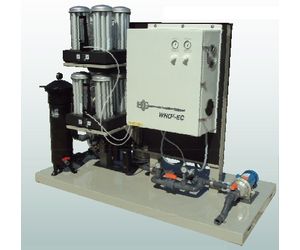

ECE Water Rights - Model WRO3 -Ozone System
WRO3 Ozone System: Water Rights Ozone Systems can generate up to 240 g/hr of ozone using oxygen fed Corona Discharge generators. The system is also available with secondary oxidation injection potential to inject either H2O2 or Chlorine and/or can be fitted with UV united to generate and Advanced Oxidation format. Two large bag filters are included to remove suspended solids. The Bag Filters alternate operation when lindede. The system comes with pre and post ORP sensors that control ozone production. Unit constructed of Stainless Steel that is powder coated.
WRO3-AO System
Fully Automated Industrial Waste Water Treatment System
240 Gram Per Hour Ozone Injection Advanced Oxidation and Filtration System
The WRO3’s main oxidation technology is ozone generated using corona discharge generating high levels of ozone. The air used to generate the ozone is either a direct feed from oxygen system or via oxygen concentrators where compressed air supplied is stripped to generate 98% oxygen to feed the ozone generators. The system is fully automated with operator interface and email capabilities.
The WRO3 system provides advanced oxidation through the use of additional oxidizers to enhance the process. Additional oxidizers can include H2O2, chlorine, UV and EC. The system is automated and designed to operate in a continuous loop process monitoring the ORP and adjusting oxidation output according to enquired oxidation reduction potential.
It is your right to clean, clear water. Technologies designed as secondary treatment or primary for less concentrated wastewater make up the WaterRights line of treatment systems.
High output ozone generation units provide up to 240 g/hr of ozone in either a circulation or aeration format for the reduction of organics, BOD and COD, coagulation of solids and destruction of bacteria.
Generate Advanced Oxidation with the UV/O3 systems for a variety of applications both residential and commercial. Our WR Filtration processes combine multiple media as well as UV/O3 secondary treatment for both residential and commercial applications.
All of these technologies ensure your RIGHT to clean water.
- Fully Automatic Operation
- Advanced Filtration Technology
- Odor/Microbial Control
- Easy Field Connections
- Technical Support
- Corrosion Resistant Components
- Reduced Water Consumption
- Reduced Disposal
- Cost Regulatory Compliant
- Removes Suspended Solids
- Removes Organic Compounds
- Environmentally Friendly – Green
- Side stream – closed loop continuous pass
- Single pass – direct feed on demand
- Alternating – closed loop/on demand cabinets
- Immersion Tanks
- Vehicle Wash
- Machinery Wash
- Aqueous Parts Washers
- Laundry Wash Water
- Metal Working Coolants
- Pressure Cleaning Solutions
