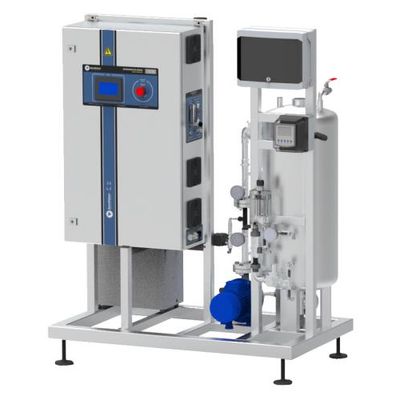

Ozcon - Model HIDRO VT GZO7-EPS -Ozone Water Injection System

• [Where to Use] Perfect for injection and maintaining high ozone levels in pressurized water pipes.
• [High Performance] Achieve high ozone doses and even mixing with the integrated pump, venturi, and contact tower.
• [Auto Operation] Set your desired ozone level and the system adjusts automatically.
• [Simple Installation] Just connect the equipment to the desired pipe and plug it in.
• [No Chemical Refill] Ozone is generated from ambient air.
• [Maximum Security] Features comprehensive process control and an ozone leak sensor.

2 years warranty (expandable with a maintenance contract)

What are the applications?

This system is designed to dose ozone into a pressurized water pipe, ensuring a constant concentration of ozone. It is primarily used for disinfecting and purifying both water and pipes. The system is widely utilized in agricultural water treatment for both drip and sprinkler irrigation systems, as well as in the treatment of drinking water, wastewater, process water, cooling towers, swimming pools, and aquaculture. Ozone is an effective disinfectant that helps maintain hygiene in both the water and the piping systems.

Product Details

• Ozone generator: Latest generation GZO7-EPS model
• Oxygen concentrator: With compressor, oxygen concentrator (it reaches 95% oxygen purity and -30ºC Dew Point)
• Ozone Dilution System: Pump + venturi + 316L stainless steel tank + anti-return safety system
• Control: By PLC. 4.3″ touch screen.
• Recipe manager, daily programmer, alarm and maintenance manager. Power PID control based on Redox or Ozone dissolved.
• Communication: Wired remote ON, Status relays (Initiated, Generating, Fault), Allows ModBus communication. Optionally allows Remote Access with full control with VPN router.
• Sensors: Amps in Ozone, Compressed Air Pressure, Oxygen Pressure and Flow, Ozone Leaks. Door Opening.
• In the plant: Redox control, maximum and minimum pressure switch in the tower, manometer. Optional dissolved ozone sensor.
• Technical Valves: Outlet ozone electrovalve, Oxygen flowmeter with manual regulation. Stainless steel 316L motorized safety anti-return valve on the venturi.
• Included in the packaging: User manual

The HIDRO VT ozone plant features a touch screen interface that allows for easy and intuitive programming of various treatments throughout the day using a recipe planner. Upon receiving a start command, the refrigeration circuit is activated, and the compressor begins to draw air from the atmosphere. The air undergoes filtration and drying before entering the PSA, where nitrogen is removed and oxygen is concentrated to 95% purity. This oxygen is then directed to the generation core where corona discharge transforms it into ozone.

An oxygen flow meter enables the regulation of the desired ozone flow. The ozone is then routed to a venturi where it is injected into the water of the customer’s line. In the tank, the ozone is homogenized, allowing sufficient contact time for it to react, effectively disinfecting and purifying the water.
