Ozonefac - Model 10G - CT-MQ Series -Quartz Tube Ozone Generator Parts
CT-MQ series air cooled quartz tube ozone generator, it includes 10g/hr corona discharge ozone generator tube + sealed power supply. (if requires adjustable ozone output, please choose CT-AQ series).
Model: CT-MQ10G-A 10G Ozone tube generator
The quartz tube is high temperature resistant, high ozone concentration and stable ozone output.
It`s mini gap design for corona discharge tube, ensuring the high effective ozone production and low noise.
Corona discharge ozone tube using high voltage high frequency, but low power consumption, 8~10KW.h/kgO3.
We are using stainless steel 316L for internal electrode of this ozone generator; PVDF material connectors for ensuring several years running without ozone leakage.
Ozone generator electrodes are using with aluminum radiator which is good at heating dissipation, air cooled is easy installation and operation.
Extremely high ozone concentration, about 68-95Mg/L, powerful enough for different air and water purification.

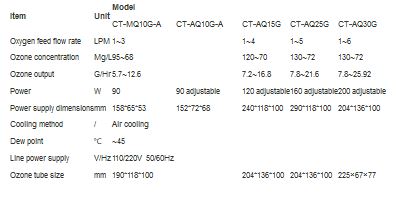

Specifications of CT-MQ10G-A quartz ozone generator tube, spare parts for ozone machine, air purifier, water purifier.
