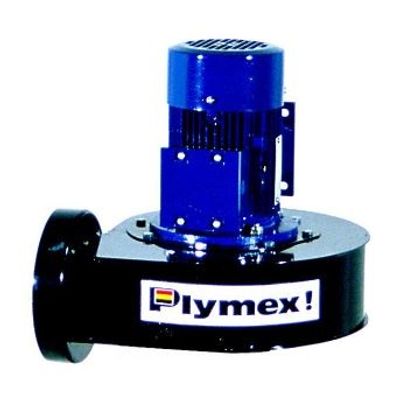

Plymoth - P-Max Fans for use with Extractor Arms and Extractor Cranes
The P-Max fans are designed for extracting smoke, gas and lighter dust. They fit directly to the extractor or together with a mounting bracket. Outlet is round with an inside diameter of 200 mm. For Extractor Cranes the 2100 TURBO is recommended.
Most popular related searches
Mounting
The P-Max fans fit the different extractors in the following ways;
- The wall bracket directly: Flexi Extractor Arms, Pro-Flex PRSV and Super-Max SMSV.
- Together with Fan Bracket and Inlet P-088 (d.125 mm) P-016 (d.160 mm) or P-089 (d.200 mm): Pro-Flex and Super-Max Extractor Arms.
- Together with Fan Bracket with Turning Flange P-045 (d.160 mm) or P-151 (d.200 mm): Flexi, Pro-Flex and Super-Max Extractor Cranes.
