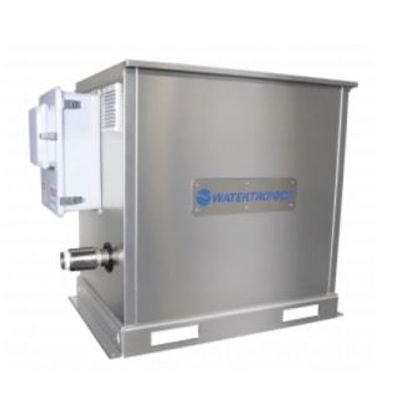

Watertronics - Model Watermax Pulse -Packaged Pump Station for Landscape

SHARE

Ideally suited for small sports fields, schools, parks, large residential and commercial applications, the WaterMax Pulse offers users a simple low maintenance system with a quick, easy startup.

Most popular related searches
packaged pump station
package pump station
stainless steel horizontal centrifugal pump
stainless steel check valve
pump station
stainless steel pipe
horizontal centrifugal pumping
horizontal centrifugal pump
variable frequency drive
stainless steel centrifugal pump
  • Application: Booster, Flooded Intake
  • Flow: Up to 120 GPM
  • Pressure: Up to 85 PSI
  • Horsepower: 3, 5, & 7.5hp
  • Voltage: 208V, 230V, 460V

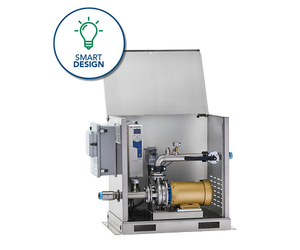

Smart Design
  • Maximum efficient VFD with quick-start guide
  • 120 VAC/4 AMP power outlet
  • 24 VAC pump start relay

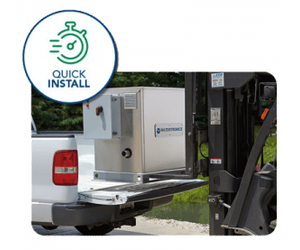

Quick Install
  • Forklift-ready skid for easy access lifting points
  • Light weight (350lbs) design for easy transport

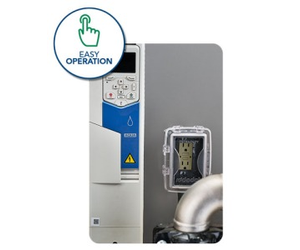

Easy Operation
  • Maximum efficient VFD with quick-start guide
  • 120 VAC power outlet
  • 24 VAC pump start relay

  • UL Listed packaged pump station
  • 100kA SCCR Rating
  • Energy efficient Variable Frequency Drive (VFD) maintains constant pressure at varying flow demand
  • Starting Options:
  • Pressure drop
  • 24 VAC remote start relay
  • Flow based (Booster)
  • Surge-free starting allows for slow pipe fill at pump start up
  • External green system run indicator light
  • External red system fault indicator light
  • Pump thermal protection sensor
  • Stainless steel flow switch
  • Stainless steel pressure transducer
  • Marine grade aluminum station enclosure and base
  • Pad-lockable station and power enclosure
  • System fault protection alerts:
    • VFD fault shutdown
    • High pump temperature shutdown
    • Motor overload shutdown
    • Transducer failure shutdown
    • Low pressure shut down and pipe break protection
    • High pressure shutdown
    • Phase loss (3 phase only)
    • Loss of prime
    • Pump deadhead shutdown

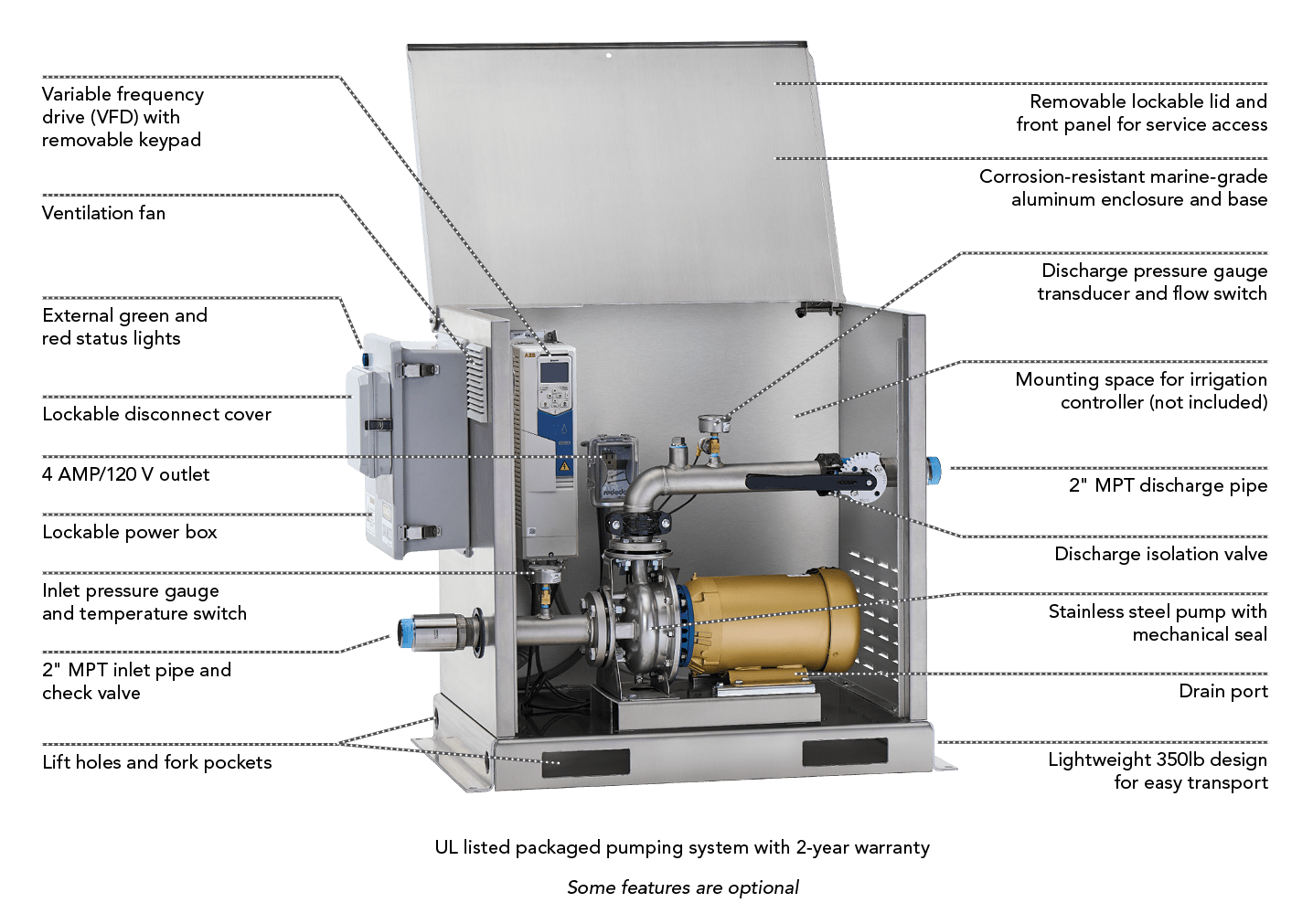

  • UL Type 3R, UL508A listed composite power enclosure with 60 AMP fused disconnect
  • 120 VAC power outlet
  • Stainless steel Horizontal Centrifugal Pump with mechanical seal
  • Horizontal premium efficient TEFC motor
  • Station enclosure ventilation fan
  • Station inlet and discharge pressure gauges
  • Discharge isolation valve
  • 2″ stainless steel check valve
  • 304 stainless steel piping
  • 1” priming port
  • Threaded NPT inlet and outlet connections
  • -Booster: 2” inlet & outlet

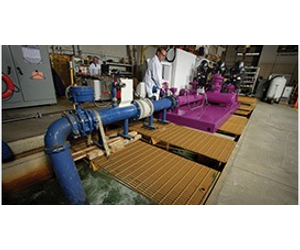

Dynamic Testing
Prior to delivery, eachstation is tested to site specific conditions for full dynamic flow, operation and 7-point vibration performance in our 88,000 gallon factory test pit.
