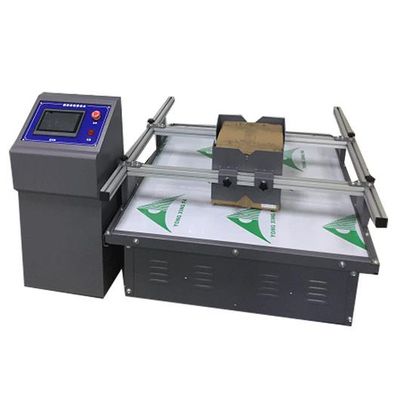

Xinbao - Packaging Vibration Testing Equipment
The vibration tester machine simulates a transportation environment and applies to the vibration test of toys, electronics, furniture, gifts, ceramics, communications, packaging, equipment, computer and automobile components, etc.
Most popular related searches
vibration testing system
vibration test
vibrating table
machine simulation
packaging testing system
packaging testing
padding machine
vibration instrument
humidity control
- Frequency range: 60~300RPM cycle/min (Adjustable)
- Vibration mode: Rotary vibration (Vertical and horizontal)
- Amplitude range: 25.4mm(1 inch) meet ISTA/EN71
- Max.Load: 60KG
- Accuracy Grade: 0.5
- Simulation speed: 25 ~ 40km / h
- Working Table size(L*W)(mm): 100*110 cm
- Digital speed: Accuracy is not greater than ± 3 rev/min
- Work time setting range: 0~999H99M
- Speed display accuracy: 1RPM cycle/min
- Motor Power: 1HP
- Max. current: 5A
- Power: 1 phase 220V 50Hz/60Hz
- Overall dimensions: 1200*1000*700 mm
- Machine weight: 134kg
- Environmental conditions: temperature: 5 ~ 40 ?, relative humidity ≤ 85%
- Speed control mode: DC speed control or AC frequency control
- The price of the vibrating table is only 10% of similar products in the United States.
- Digital instrument display vibration frequency.
- Synchronous mute belt drive.
- The specimen is clamped with rail, easy to operate, and safe.
- The base of the vibration shaker table adopts a heavy-duty trench with a damping pad. The vibration testing machine is easy to install, has smooth operation, and does not need to install the foot screw.
- DC motor speed, smooth operation, strong load capacity.
- Rotary vibration (racing) aligns with European and American transport standards.
- Packaging materials
- PC boards
- Electrical products
- Toys
- Furniture
- Gifts
- Communications
- Computer
- Automobile components
